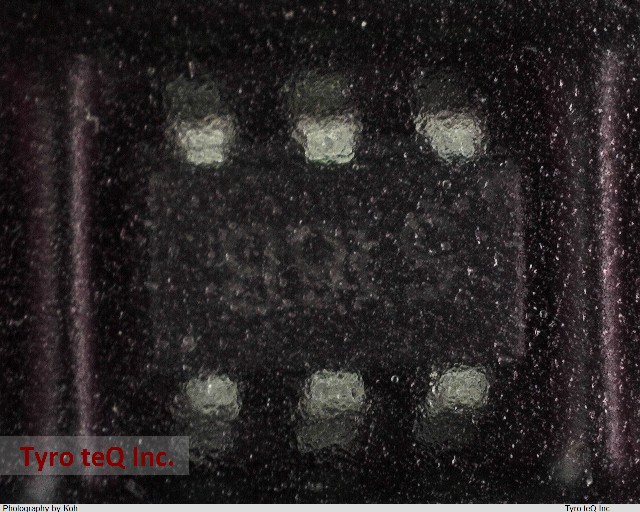

LM2766M6 データシート

Name: LM2766M6
Brand: TI
SKU: 220223243-0000-0000-0000

LM2766M6 - TI の商品詳細ページです。

２営業日以内に回答いたします

LM2766M6 の詳細情報

型番	LM2766M6
メーカー	TI
データシート
Analog IC - Other Type	SWITCHED CAPACITOR CONVERTER
Input Voltage-Max	5.5 V
Input Voltage-Min	1.8 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e0
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.02 A
Output Voltage-Max	11 V
Output Voltage-Min	3.6 V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.22 mm
Sub Category	Other Analog ICs
Supply Current-Max (Isup)	0.45 mA
Surface Mount	YES
Switcher Configuration	DOUBLER INVERTER
Switching Frequency-Max	350 kHz
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	1.6 mm
