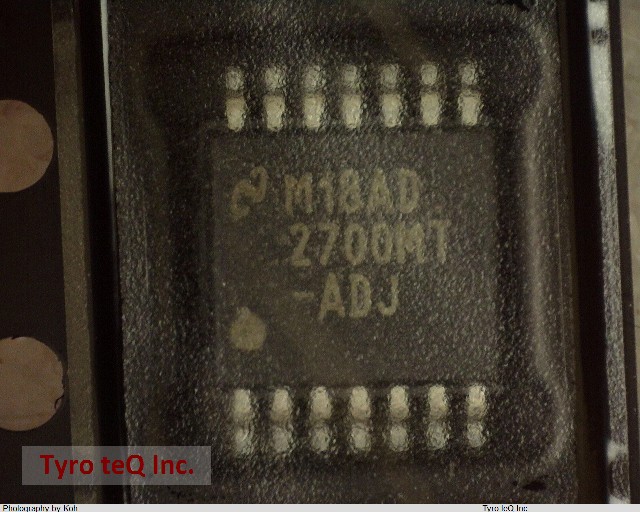

LM2700MTX-ADJ/NOPB

Name: LM2700MTX-ADJ/NOPB
Brand: TI
SKU: 220222047-0000-0000-0000

LM2700MTX-ADJ/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LM2700MTX-ADJ/NOPB の詳細情報

型番	LM2700MTX-ADJ/NOPB
メーカー	TI
Additional Feature	ALSO HAS ADJUSTABLE OUTPUT VOLTAGE UP TO 17.5V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	12 V
Input Voltage-Min	2.2 V
Input Voltage-Nom	2.7 V
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	5 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	4.3 A
Output Voltage-Max	17.5 V
Output Voltage-Min	1.26 V
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1250 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	4.4 mm
