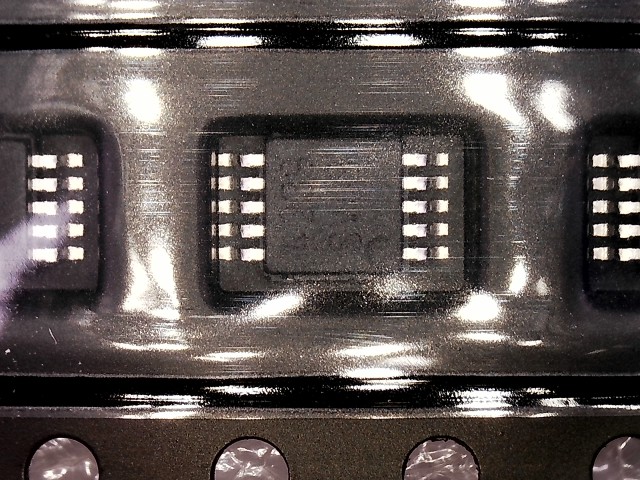

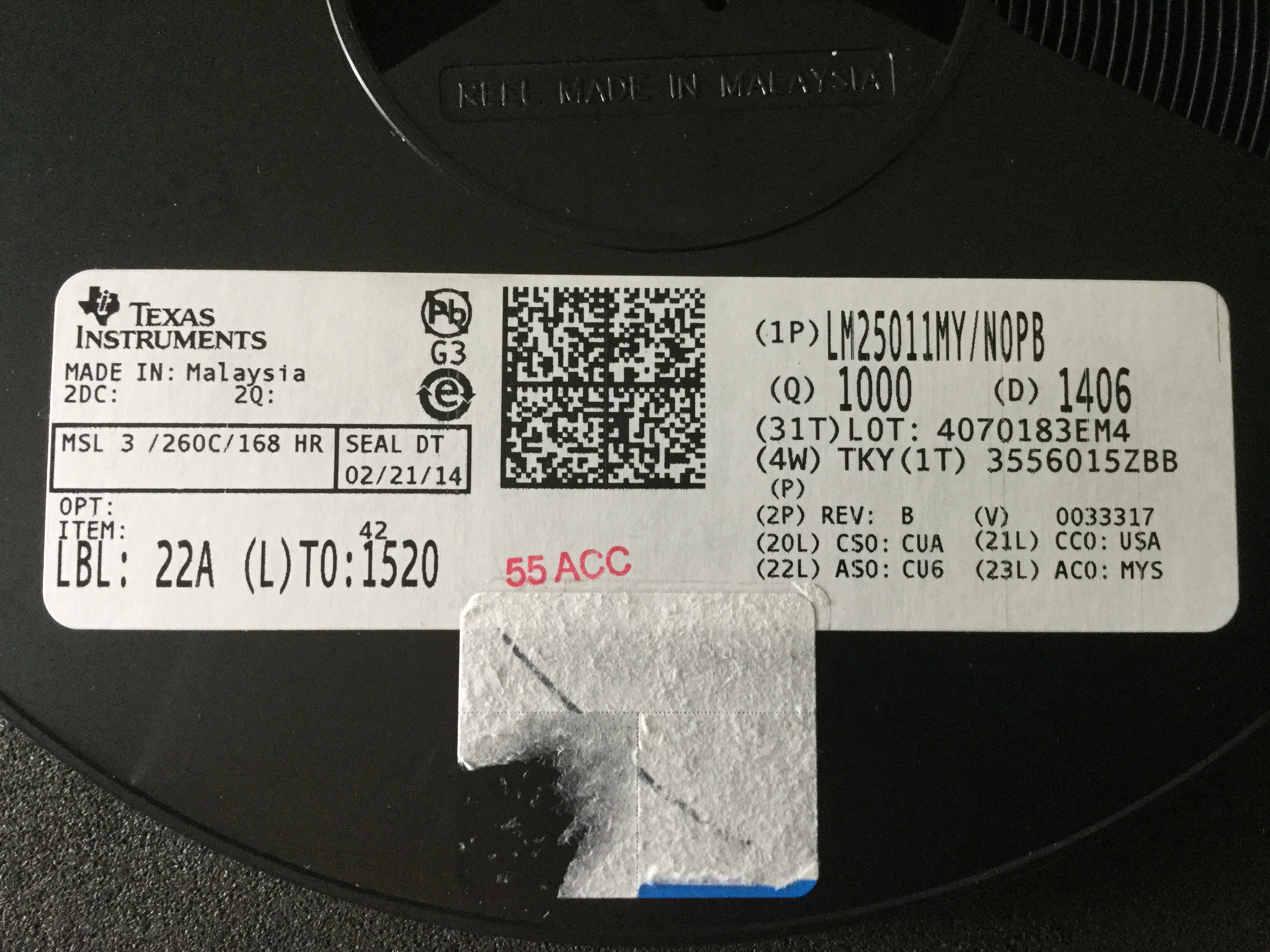

LM25011MY/NOPB

Name: LM25011MY/NOPB
Brand: TI
SKU: 220189409-0000-0000-0000

LM25011MY/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LM25011MY/NOPB の詳細情報

型番	LM25011MY/NOPB
メーカー	TI
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 2.51V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Input Voltage-Max	42 V
Input Voltage-Min	6 V
Input Voltage-Nom	12 V
JESD-30 Code	S-PDSO-G10
JESD-609 Code	e3
Length	3 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Outputs	1
Number of Terminals	10
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2 A
Output Voltage-Max	40 V
Output Voltage-Min	2.51 V
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP10,.19,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.09 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	1.6 mA
Supply Voltage-Nom (Vsup)	12 V
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2000 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
