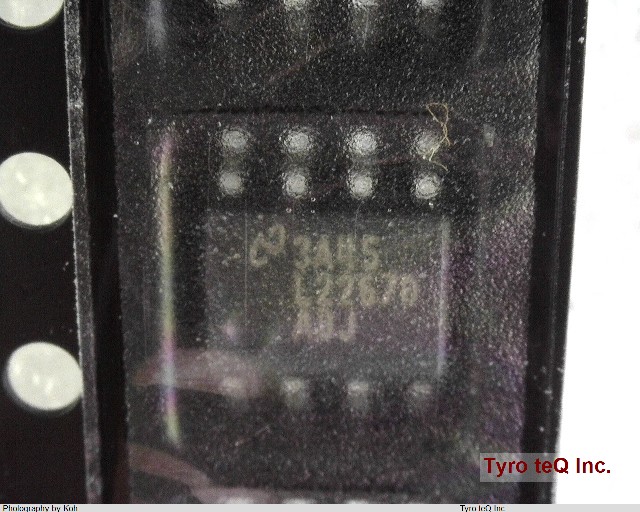

LM22670MRE-ADJ/NOPB

Name: LM22670MRE-ADJ/NOPB
Brand: TI
SKU: 220189365-0000-0000-0000

LM22670MRE-ADJ/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LM22670MRE-ADJ/NOPB の詳細情報

型番	LM22670MRE-ADJ/NOPB
メーカー	TI
Additional Feature	ALSO HAS ADJUSTABLE OUTPUTS AS LOW AS 1.285V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	42 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	3 A
Output Voltage-Max	37 V
Output Voltage-Min	1.285 V
Package Body Material	PLASTIC/EPOXY
Package Code	HLSOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.68 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	600 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	3.9 mm
