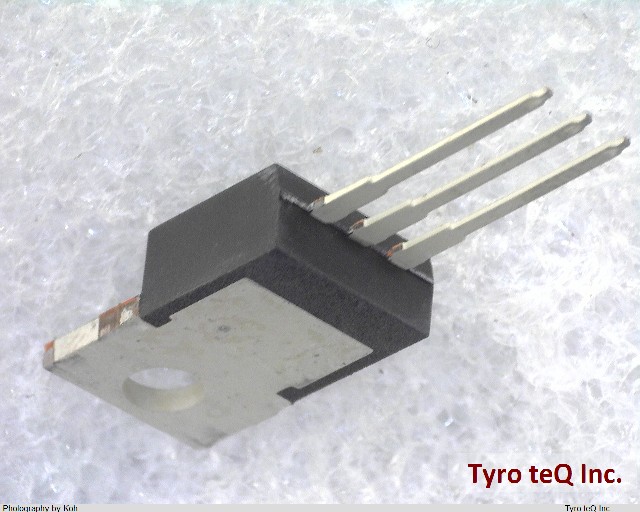

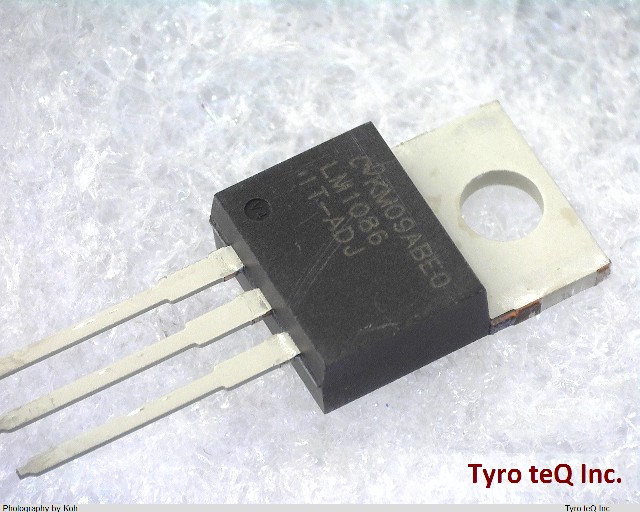

LM1086IT-ADJ データシート

Name: LM1086IT-ADJ
Brand: TI
SKU: 220218773-0000-0000-0000

LM1086IT-ADJ - TI の商品詳細ページです。

２営業日以内に回答いたします

LM1086IT-ADJ の詳細情報

型番	LM1086IT-ADJ
メーカー	TI
データシート
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	1.5 V
Dropout Voltage1-Nom	1.3 V
Input Voltage-Max	29 V
Input Voltage-Min	2.6 V
Input-Output Voltage Differential-Max	15 V
Input-Output Voltage Differential-Min	1.5 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Length	14.986 mm
Line Regulation-Max (%/V)	0.01
Load Regulation-Max(%)	0.4 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	1.5 A
Output Voltage1-Max	15 V
Output Voltage1-Min	1.2 V
Package Body Material	PLASTIC/EPOXY
Package Code	SFM
Package Equivalence Code	SIP3,.1TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Packing Method	RAIL
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	4.7 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	40
Voltage Tolerance-Max	2 %
Width	10.16 mm
