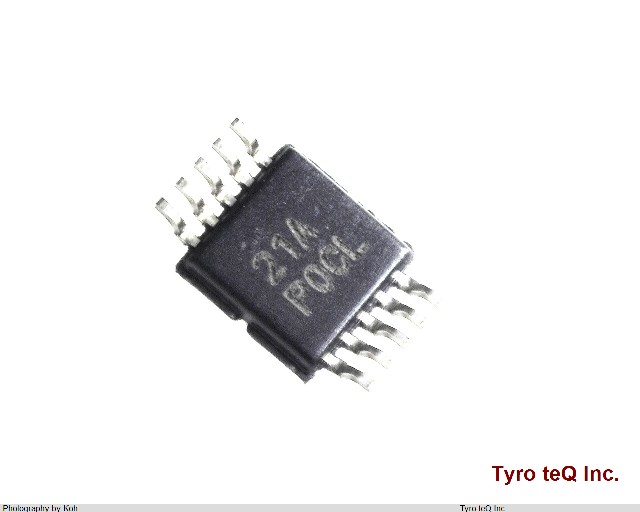

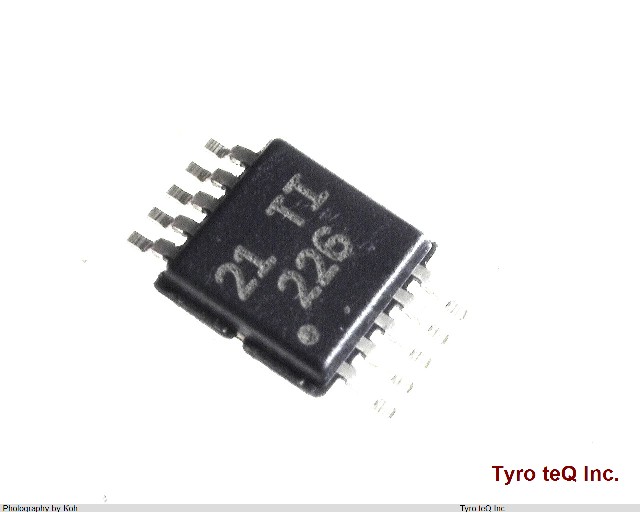

INA226AIDGSR データシート

Name: INA226AIDGSR
Brand: TI
SKU: 190092725-0000-0000-0000

INA226AIDGSR - TI の商品詳細ページです。

２営業日以内に回答いたします

INA226AIDGSR の詳細情報

型番	INA226AIDGSR
メーカー	TI
データシート
Analog IC - Other Type	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 Code	S-PDSO-G10
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Number of Terminals	10
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	TSSOP10,.19,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.07 mm
Sub Category	Power Management Circuits
Supply Current-Max (Isup)	0.42 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Threshold Voltage-Nom	+2V V
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
