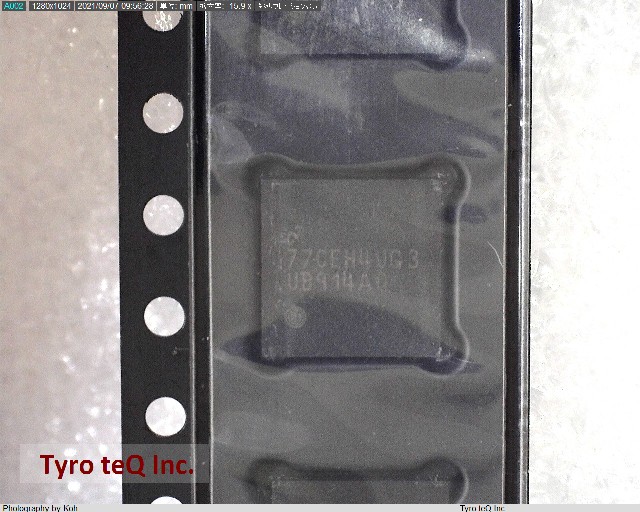

DS90UB914ATRHSTQ1

Name: DS90UB914ATRHSTQ1
Brand: TI
SKU: 140188275-0000-0000-0000

DS90UB914ATRHSTQ1 - TI の商品詳細ページです。

２営業日以内に回答いたします

DS90UB914ATRHSTQ1 の詳細情報

型番	DS90UB914ATRHSTQ1
メーカー	TI
Differential Output	YES
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE RECEIVER
Interface Standard	ISO 10605
JESD-30 Code	S-PQCC-N48
JESD-609 Code	e3
Length	7 mm
Moisture Sensitivity Level	3
Number of Functions	2
Number of Terminals	48
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Receive Delay-Max	0 ns
Receiver Number of Bits	2
Screening Level	AEC-Q100
Seated Height-Max	0.8 mm
Supply Voltage-Max	1.89 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Supply Voltage1-Max	1.89 V
Supply Voltage1-Min	1.71 V
Supply Voltage1-Nom	1.8 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7 mm
