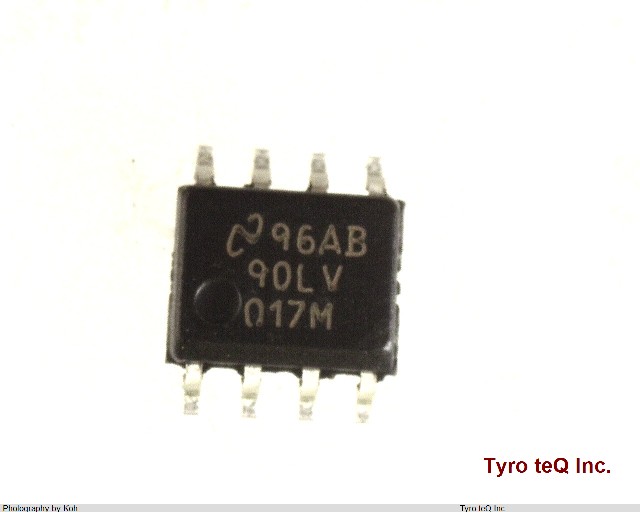

DS90LV017M データシート

Name: DS90LV017M
Brand: TI
SKU: 400042252-0000-0000-0000

DS90LV017M - TI の商品詳細ページです。

２営業日以内に回答いたします

DS90LV017M の詳細情報

型番	DS90LV017M
メーカー	TI
データシート
Differential Output	YES
Driver Number of Bits	1
High Level Input Current-Max	1.0E-5 Amp
Input Characteristics	STANDARD
Interface IC Type	LINE DRIVER
Interface Standard	EIA-644; TIA-644
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Out Swing-Min	0.25 V
Output Characteristics	3-STATE
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIE
Package Equivalence Code	DIE OR CHIP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	235
Power Supplies	3.3 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Seated Height-Max	1.75 mm
Sub Category	Line Driver or Receivers
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max	6 ns
Width	3.9 mm
