DS89C386TMEA/NOPB データシート

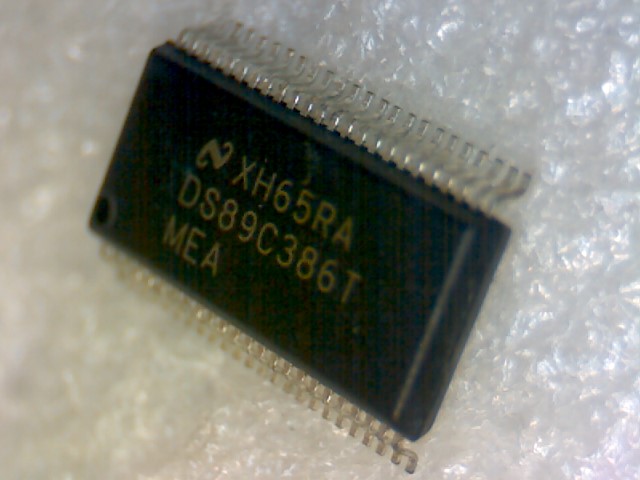

Name: DS89C386TMEA/NOPB
Brand: TI
SKU: 140188774-0000-0000-0000

DS89C386TMEA/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

DS89C386TMEA/NOPB の詳細情報

型番	DS89C386TMEA/NOPB
メーカー	TI
データシート
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE RECEIVER
Interface Standard	EIA-422-B; TIA-422-B
JESD-30 Code	R-PDSO-G48
JESD-609 Code	e3
Length	15.875 mm
Moisture Sensitivity Level	2A
Number of Functions	12
Number of Terminals	48
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Low Current-Max	0.006 Amp
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP48,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	30 ns
Receiver Number of Bits	12
Seated Height-Max	2.74 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	69 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	7.5 mm
