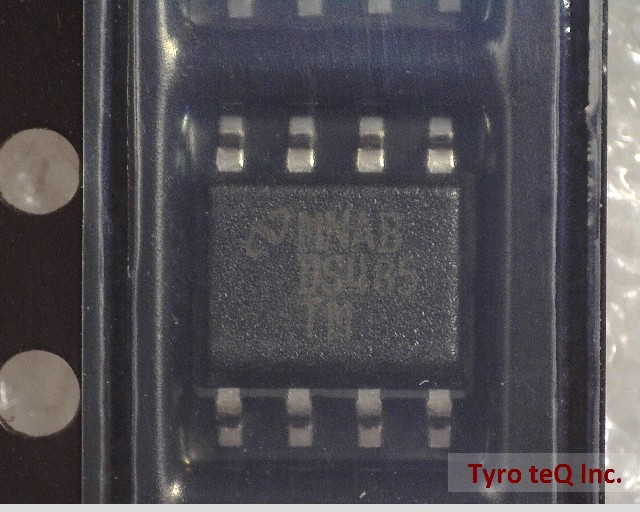

DS485TMX/NOPB データシート

Name: DS485TMX/NOPB
Brand: TI
SKU: 140195747-0000-0000-0000

DS485TMX/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

DS485TMX/NOPB の詳細情報

型番	DS485TMX/NOPB
メーカー	TI
データシート
Differential Output	YES
Driver Number of Bits	1
High Level Input Current-Max	2.0E-6 Amp
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422; EIA-485; TIA-485
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	1.5 V
Output Low Current-Max	0.004 Amp
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	320 ns
Receiver Number of Bits	1
Seated Height-Max	1.75 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	0.9 mA
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Transmit Delay-Max	65 ns
Width	3.9 mm
