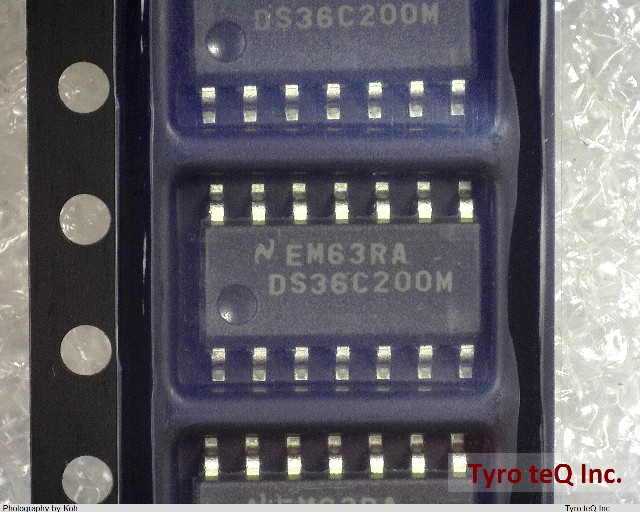

DS36C200M データシート

Name: DS36C200M
Brand: TI
SKU: 140012608-0000-0000-0000

DS36C200M - TI の商品詳細ページです。

２営業日以内に回答いたします

DS36C200M の詳細情報

型番	DS36C200M
メーカー	TI
データシート
Differential Output	YES
Driver Number of Bits	2
High Level Input Current-Max	1.0E-5 Amp
Input Characteristics	DIFFERENTIAL
Interface IC Type	LINE TRANSCEIVER
Interface Standard	IEEE 1394
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	8.65 mm
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Out Swing-Min	0.172 V
Output Characteristics	DIFFERENTIAL
Output Low Current-Max	0.002 Amp
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	235
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	9 ns
Receiver Number of Bits	2
Seated Height-Max	1.75 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	17 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	5.5 V
Supply Voltage1-Min	4.5 V
Supply Voltage1-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max	5.5 ns
Width	3.9 mm
