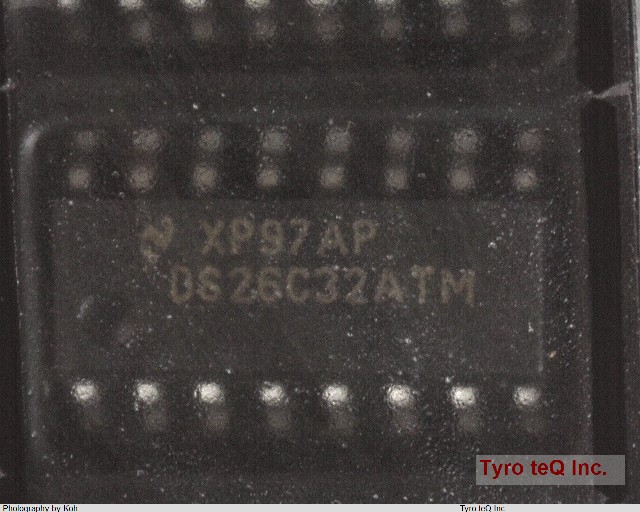

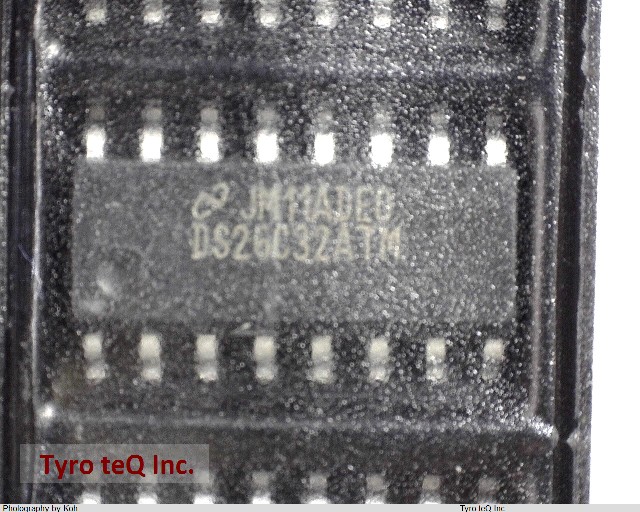

DS26C32ATM/NOPB

Name: DS26C32ATM/NOPB
Brand: TI
SKU: 140184579-0000-0000-0000

DS26C32ATM/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

DS26C32ATM/NOPB の詳細情報

型番	DS26C32ATM/NOPB
メーカー	TI
Differential Output	NO
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE RECEIVER
Interface Standard	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	9.9 mm
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Low Current-Max	0.006 Amp
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	30 ns
Receiver Number of Bits	4
Seated Height-Max	1.75 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	23 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	5.5 V
Supply Voltage1-Min	4.5 V
Supply Voltage1-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Transmit Delay-Max	35 ns
Width	3.9 mm
