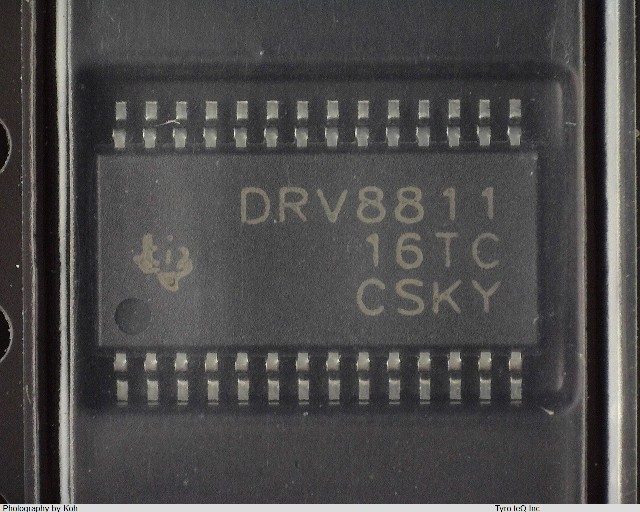

DRV8811PWP データシート

Name: DRV8811PWP
Brand: TI
SKU: 140122850-0000-0000-0000

DRV8811PWP - TI の商品詳細ページです。

２営業日以内に回答いたします

DRV8811PWP の詳細情報

型番	DRV8811PWP
メーカー	TI
データシート
Analog IC - Other Type	STEPPER MOTOR CONTROLLER
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e4
Length	9.7 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	6 A
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP28,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Motion Control Electronics
Supply Current-Max (Isup)	8 mA
Supply Voltage-Max (Vsup)	38 V
Supply Voltage-Min (Vsup)	8 V
Supply Voltage-Nom (Vsup)	35 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
