DCH010505SN7 データシート

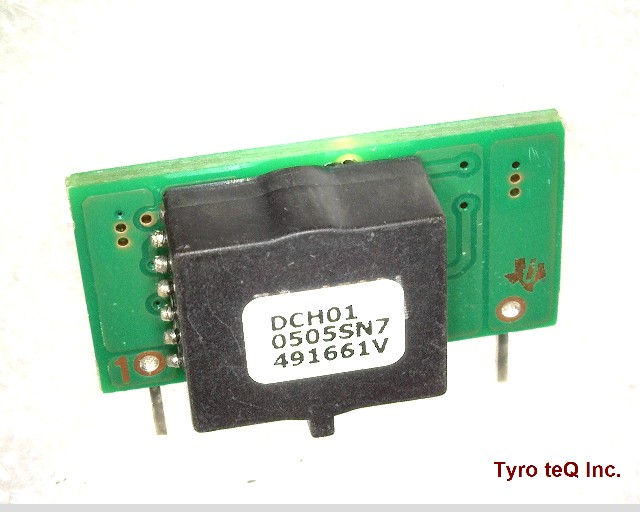

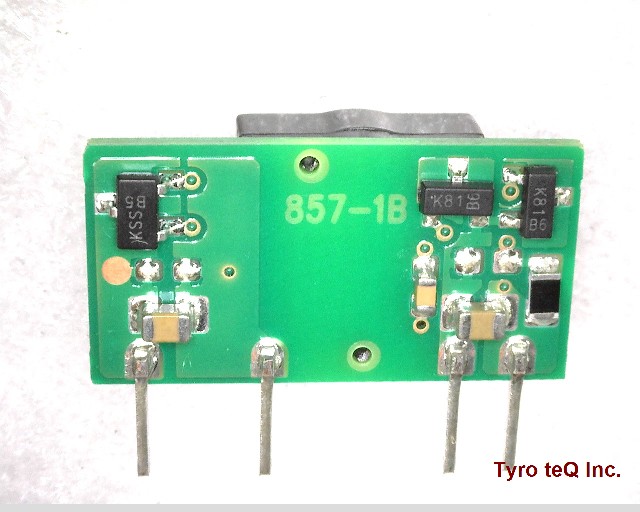

Name: DCH010505SN7
Brand: TI
SKU: 140055222-0000-0000-0000

DCH010505SN7 - TI の商品詳細ページです。

２営業日以内に回答いたします

DCH010505SN7 の詳細情報

型番	DCH010505SN7
メーカー	TI
データシート
Analog IC - Other Type	DC-DC UNREGULATED POWER SUPPLY MODULE
Approvals	UL V
Control Mode	VOLTAGE-MODE
Efficiency (Main Output)	72 %
Input Voltage-Max	5.5 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	4.5 V
JESD-30 Code	R-PSMA-T4
Length	19.56 mm
Load Regulation-Max	9 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	4
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.2 A
Output Voltage-Max	5.25 V
Output Voltage-Min	4.75 V
Output Voltage-Nom	5.1 V
Package Body Material	PLASTIC/EPOXY
Package Code	SMA
Package Equivalence Code	SIP4/7,.2
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Ripple Voltage (Main Out)	0.012 Vrms
Seated Height-Max	7.62 mm
Sub Category	Other Analog ICs
Surface Mount	NO
Switcher Configuration	PUSH-PULL
Technology	HYBRID
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	1 W
Trim/Adjustable Output	NO V
Width	7.62 mm
