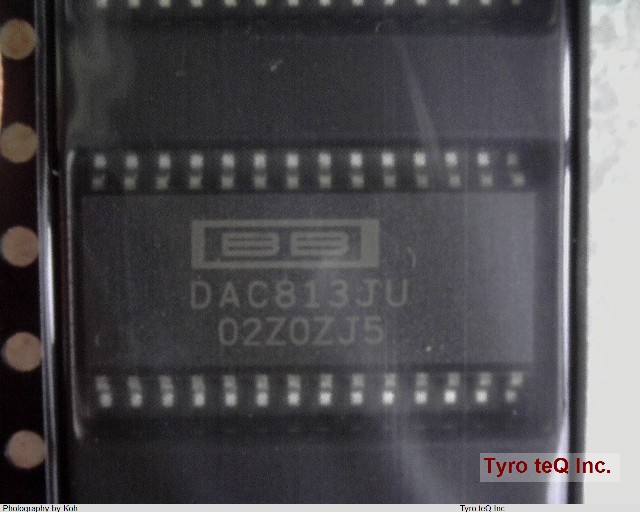

DAC813JU データシート

Name: DAC813JU
Brand: TI
SKU: 140049153-0000-0000-0000

DAC813JU - TI の商品詳細ページです。

２営業日以内に回答いたします

DAC813JU の詳細情報

型番	DAC813JU
メーカー	TI
データシート
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY, OFFSET BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	17.9 mm
Linearity Error-Max (EL)	0.0122 %
Moisture Sensitivity Level	3
Negative Supply Voltage-Nom	-15 V
Number of Bits	12
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.4
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-12/+-15 V
Qualification Status	Not Qualified
Sample Rate	0.167 MHz
Seated Height-Max	2.65 mm
Settling Time-Max	6 us
Settling Time-Nom (tstl)	4 us
Sub Category	Other Converters
Supply Current-Max	15 mA
Supply Voltage-Nom	15 V
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.5 mm
