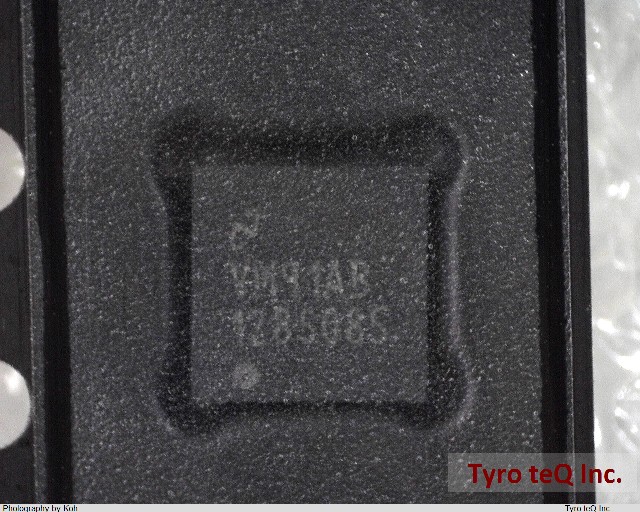

DAC128S085CISQ データシート

Name: DAC128S085CISQ
Brand: TI
SKU: 140201920-0000-0000-0000

DAC128S085CISQ - TI の商品詳細ページです。

２営業日以内に回答いたします

DAC128S085CISQ の詳細情報

型番	DAC128S085CISQ
メーカー	TI
データシート
Analog Output Voltage-Max	5.5 V
Analog Output Voltage-Min	0 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	SERIAL
JESD-30 Code	S-PQCC-N16
JESD-609 Code	e0
Length	4 mm
Linearity Error-Max (EL)	0.195 %
Moisture Sensitivity Level	1
Number of Bits	12
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC16,.16SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Sample Rate	2.5 MHz
Seated Height-Max	0.8 mm
Settling Time-Max	8.5 us
Settling Time-Nom (tstl)	6 us
Sub Category	Other Converters
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	4 mm
