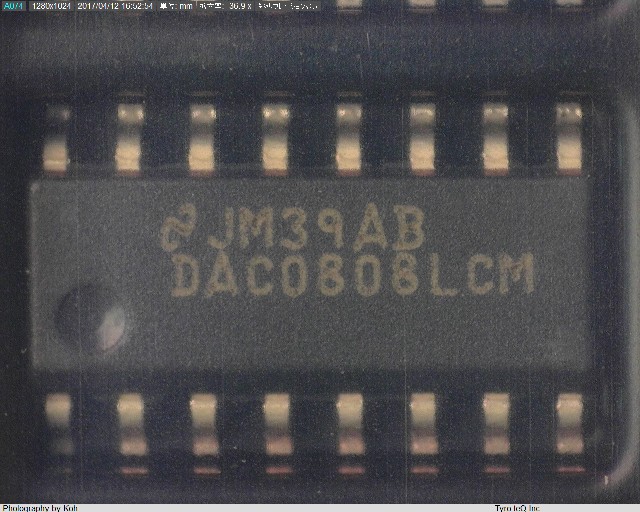

型番 | DAC0808LCM/NOPB |
---|---|
メーカー | TI |
Analog Output Voltage-Max | 0.4 V |
Analog Output Voltage-Min | -5 V |
Converter Type | D/A CONVERTER |
Input Bit Code | BINARY |
Input Format | PARALLEL, 8 BITS |
JESD-30 Code | R-PDSO-G16 |
JESD-609 Code | e3 |
Length | 9.9 mm |
Linearity Error-Max (EL) | 0.19 % |
Moisture Sensitivity Level | 1 |
Negative Supply Voltage-Nom | -15 V |
Number of Bits | 8 |
Number of Functions | 1 |
Number of Terminals | 16 |
Operating Temperature-Max | 70 Cel |
Operating Temperature-Min | 0 Cel |
Package Body Material | PLASTIC/EPOXY |
Package Code | SOP |
Package Equivalence Code | SOP16,.25 |
Package Shape | RECTANGULAR |
Package Style | SMALL OUTLINE Meter |
Peak Reflow Temperature (Cel) | 260 |
Power Supplies | 5,-15 V |
Qualification Status | Not Qualified |
Sample Rate | 6.6 MHz |
Seated Height-Max | 1.75 mm |
Settling Time-Max | 0.15 us |
Settling Time-Nom (tstl) | 0.15 us |
Sub Category | Other Converters |
Supply Current-Max | 22 mA |
Supply Voltage-Nom | 5 V |
Surface Mount | YES |
Technology | BIPOLAR |
Temperature Grade | COMMERCIAL |
Terminal Finish | Matte Tin (Sn) |
Terminal Form | GULL WING |
Terminal Pitch | 1.27 mm |
Terminal Position | DUAL |
Time@Peak Reflow Temperature-Max (s) | 40 |
Width | 3.9 mm |
