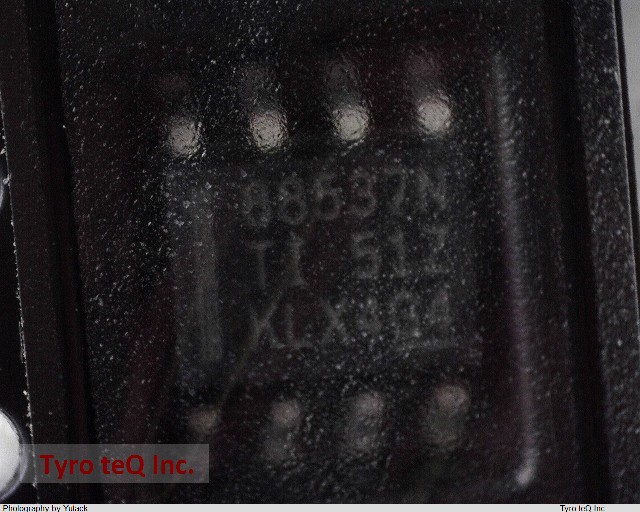

CSD88537ND

Name: CSD88537ND
Brand: TI
SKU: 130559088-0000-0000-0000

CSD88537ND - TI の商品詳細ページです。

２営業日以内に回答いたします

CSD88537ND の詳細情報

型番	CSD88537ND
メーカー	TI
Additional Feature	AVALANCHE RATED
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (ID)	8 A
Drain-source On Resistance-Max	0.019 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	5.2 pF
JEDEC-95 Code	MS-012AA
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Moisture Sensitivity Level	1
Number of Elements	2
Number of Terminals	8
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	2.1 W
Pulsed Drain Current-Max (IDM)	62 A
Surface Mount	YES
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
