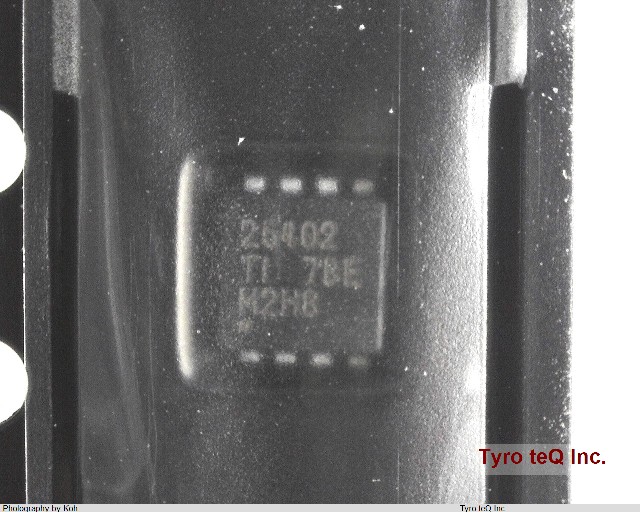

CSD25402Q3A

Name: CSD25402Q3A
Brand: TI
SKU: 130573229-0000-0000-0000

CSD25402Q3A - TI の商品詳細ページです。

２営業日以内に回答いたします

CSD25402Q3A の詳細情報

型番	CSD25402Q3A
メーカー	TI
カテゴリ	MOSFET
Case Connection	SOURCE
Configuration	SINGLE
DS Breakdown Voltage-Min	20 V
Description	P チャネル NexFET パワー MOSFET、CSD25402Q3A
Drain Current-Max (Abs) (ID)	15 A
Drain Current-Max (ID)	15 A
Drain-source On Resistance-Max	0.0159 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	51 pF
Id peak(Max)(A)	-82
JESD-30 Code	R-PDSO-F5
JESD-609 Code	e3
Logic Level	Yes
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	5
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package	SON3x3
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	P-CHANNEL
Power Dissipation-Max (Abs)	2.8 W
Pulsed Drain Current-Max (IDM)	148 A
QG Typ(nC)	7.5
QGD Typ(nC)	1.1
QGS Typ(nC)	2.4
Rds(on) Max at VGS=1.8V(mOhms)	300
Rds(on) Max at VGS=2.5V(mOhms)	15.9
Rds(on) Max at VGS=4.5V(mOhms)	8.9
Status	ACTIVE
Sub Category	Other Transistors
Surface Mount	YES
Terminal Finish	Matte Tin (Sn)
Terminal Form	FLAT
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
VDS(V)	-20
VGS(V)	-12
VGSTH Typ(V)	-0.9
