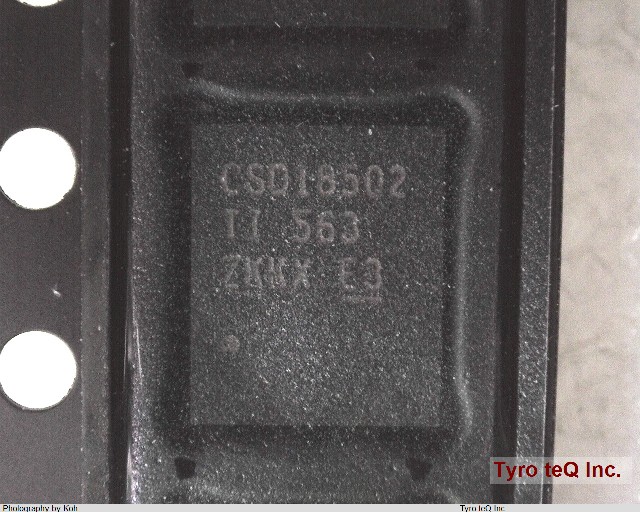

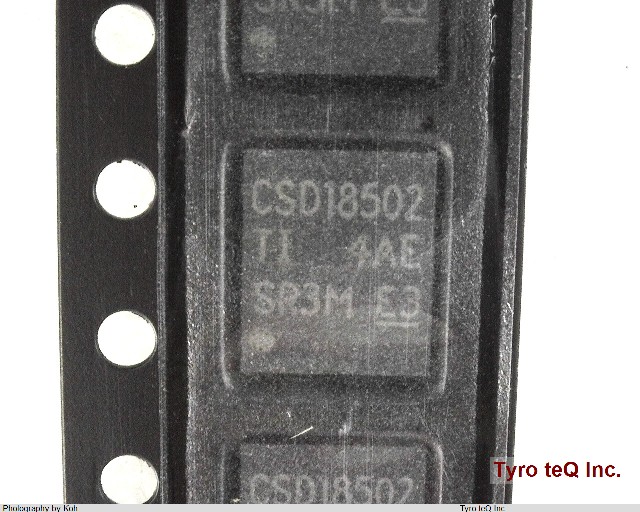

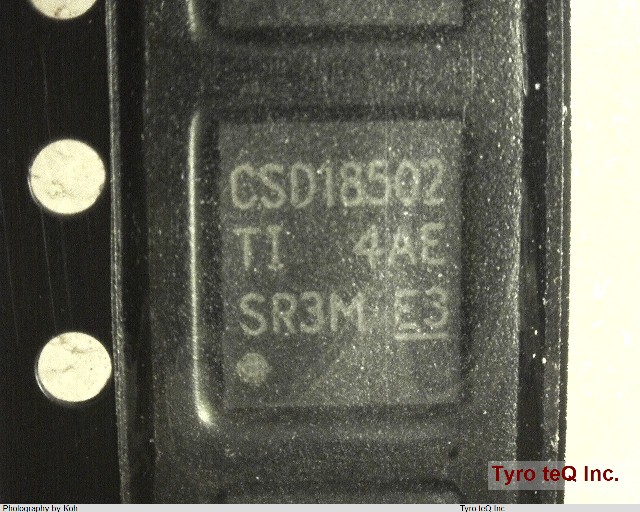

CSD18502Q5B

Name: CSD18502Q5B
Brand: TI
SKU: 400054681-0000-0000-0000

CSD18502Q5B - TI の商品詳細ページです。

２営業日以内に回答いたします

CSD18502Q5B の詳細情報

型番	CSD18502Q5B
メーカー	TI
Additional Feature	AVALANCHE RATED
Avalanche Energy Rating (Eas)	387 mJ
Case Connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	40 V
Drain Current-Max (Abs) (ID)	100 A
Drain Current-Max (ID)	26 A
Drain-source On Resistance-Max	0.0033 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	27 pF
JESD-30 Code	R-PDSO-N5
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	5
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	156 W
Pulsed Drain Current-Max (IDM)	167 A
Sub Category	FET General Purpose Powers
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
