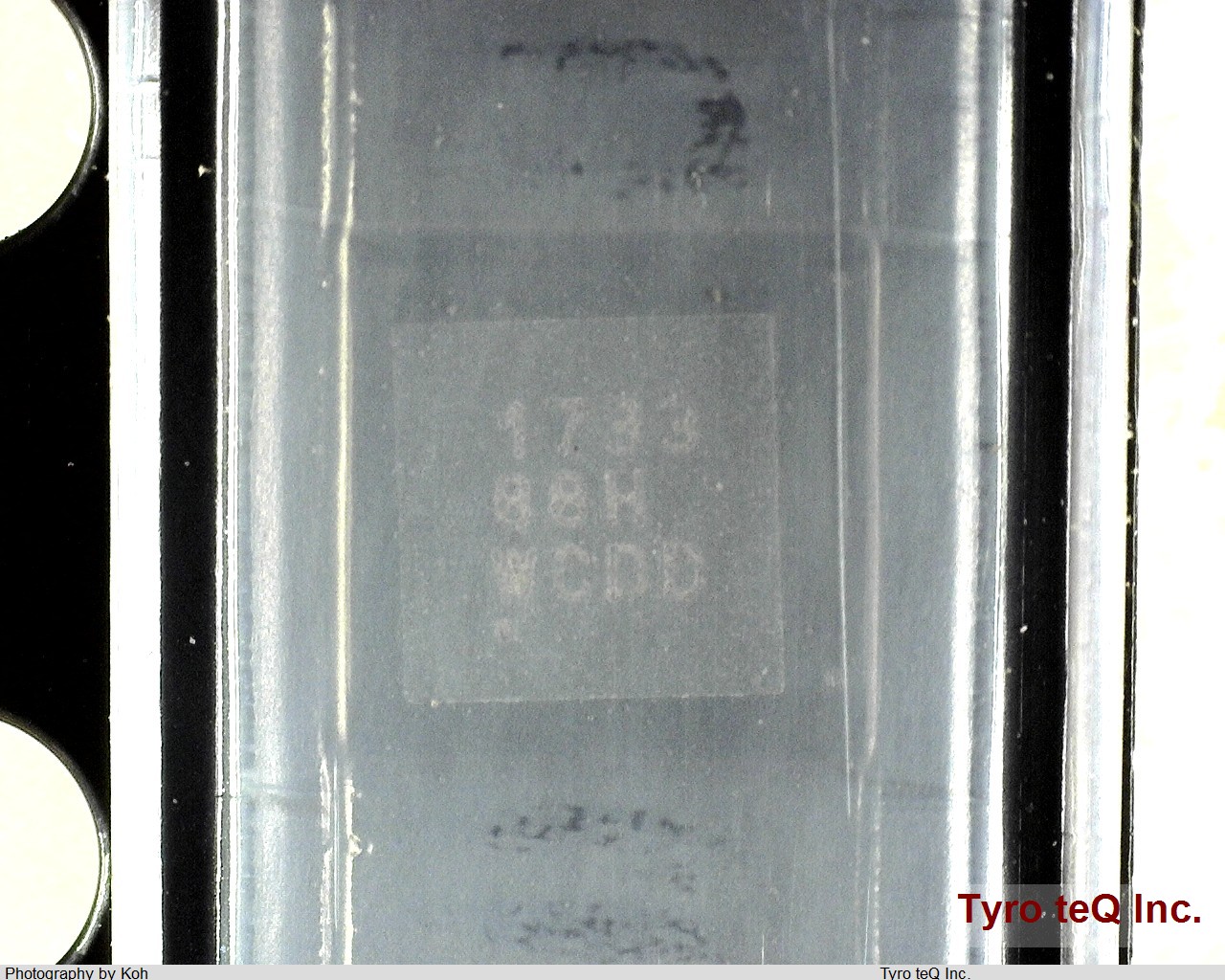

CSD17313Q2 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番CSD17313Q2
メーカーTI
カテゴリMOSFET
データシートProduct_list_pdf
Additional Feature AVALANCHE RATED
Avalanche Energy Rating (Eas) 18 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 30 V
Description 30V、N チャネル NexFET™ パワー MOSFET
Drain Current-Max (Abs) (ID) 5 A
Drain Current-Max (ID) 5 A
Drain-source On Resistance-Max 0.042 ohm
FET Technology METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss) 17 pF
ID, Continuous Drain Current at Ta=25degC(A) 5
ID, Silicon limited at Tc=25degC(A)
IDM, Max Pulsed Drain Current(Max)(A) 20
JESD-30 Code R-PDSO-N8
JESD-609 Code e3
Logic Level
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 8
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 Cel
Operating Temperature-Min -55 Cel
Package SON2x2
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 17 W
Pulsed Drain Current-Max (IDM) 20 A
QG Typ(nC) 2.1
Qualification Status Not Qualified
Rds(on) Max at VGS=10V(mOhms)
Rds(on) Max at VGS=4.5V(mOhms) 32
Reference Standard AEC-Q101
Status ACTIVE
Sub Category FET General Purpose Powers
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
VDS(V) 30
