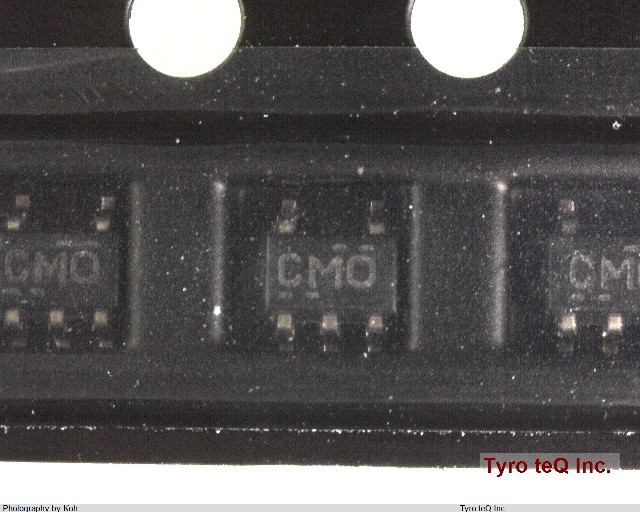

CLVC1G125MDCKREP

Name: CLVC1G125MDCKREP
Brand: TI
SKU: 130218931-0000-0000-0000

CLVC1G125MDCKREP - TI の商品詳細ページです。

２営業日以内に回答いたします

CLVC1G125MDCKREP の詳細情報

型番	CLVC1G125MDCKREP
メーカー	TI
Control Type	ENABLE LOW
Count Direction	UNIDIRECTIONAL
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e4
Length	2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.032 Amp
Moisture Sensitivity Level	1
Number of Bits	1
Number of Functions	1
Number of Ports	2
Number of Terminals	5
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP5/6,.08
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	0.01 mA
Prop. Delay@Nom-Sup	4.9 ns
Propagation Delay (tpd)	4.9 ns
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
Width	1.25 mm
