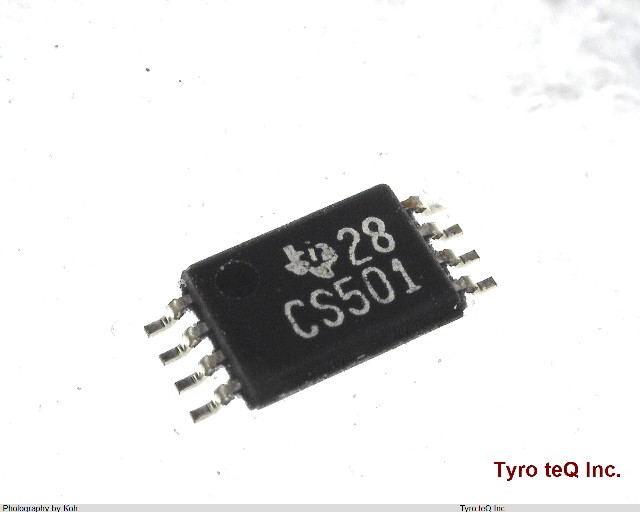

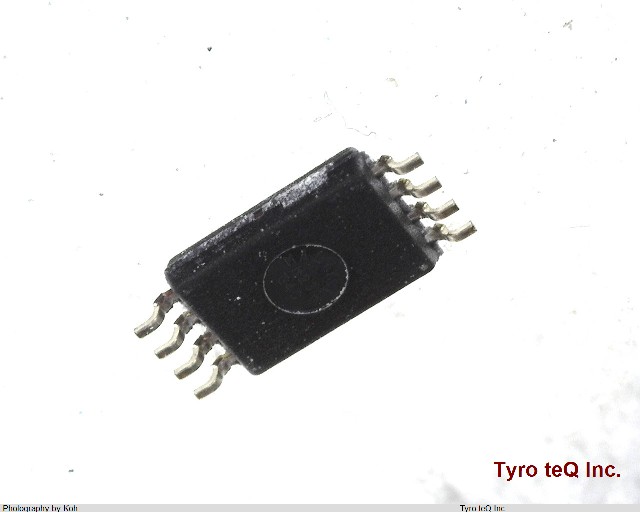

CDCS501PW データシート

Name: CDCS501PW
Brand: TI
SKU: 130405923-0000-0000-0000

CDCS501PW - TI の商品詳細ページです。

２営業日以内に回答いたします

CDCS501PW の詳細情報

型番	CDCS501PW
メーカー	TI
データシート
Family	501
Input Conditioning	STANDARD
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.4 mm
Logic IC Type	PLL BASED CLOCK DRIVER
Max I(ol)	0.012 Amp
Moisture Sensitivity Level	1
Number of Functions	1
Number of Inverted Outputs	0
Number of Terminals	8
Number of True Outputs	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Clock Drivers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
fmax-Min	108 MHz
