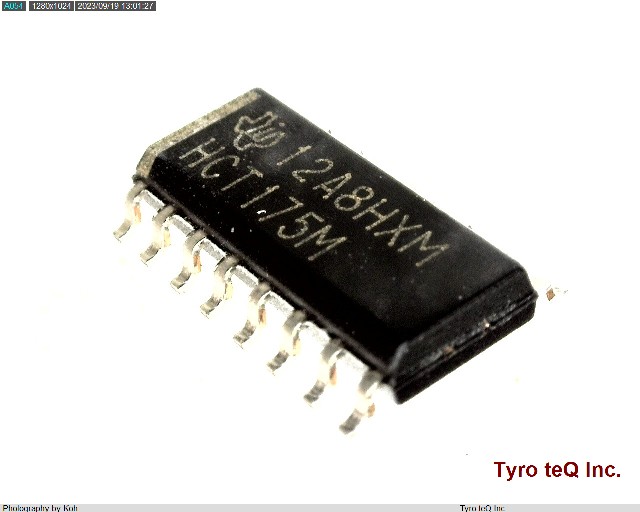

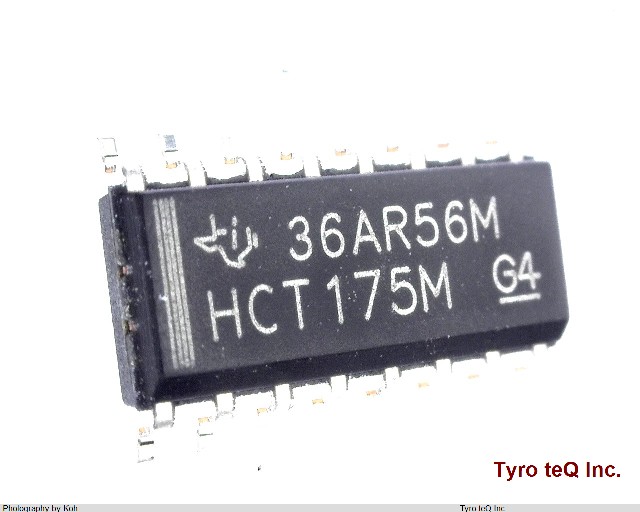

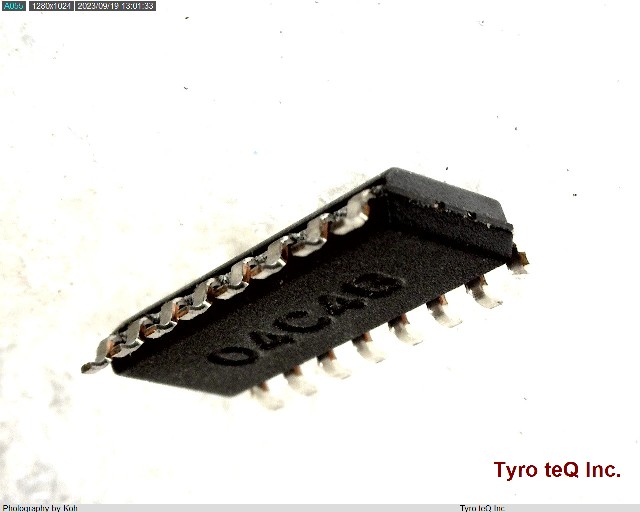

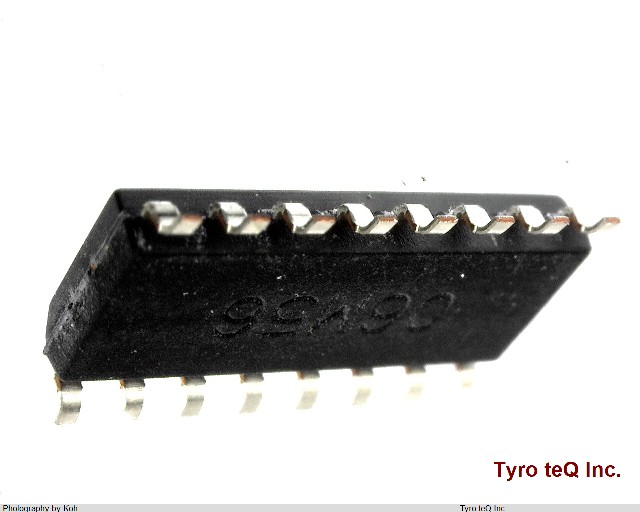

CD74HCT175M データシート

Name: CD74HCT175M
Brand: TI
SKU: 130143329-0000-0000-0000

CD74HCT175M - TI の商品詳細ページです。

２営業日以内に回答いたします

CD74HCT175M の詳細情報

型番	CD74HCT175M
メーカー	TI
データシート
Family	HCT
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	16000000 Hz
Max I(ol)	0.004 Amp
Moisture Sensitivity Level	1
Number of Bits	4
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	0.08 mA
Prop. Delay@Nom-Sup	53 ns
Propagation Delay (tpd)	50 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	FF/Latch
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	3.9 mm
fmax-Min	16 MHz
