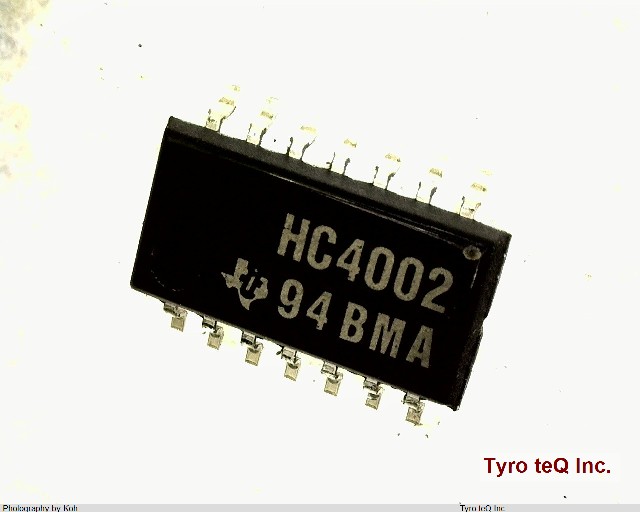

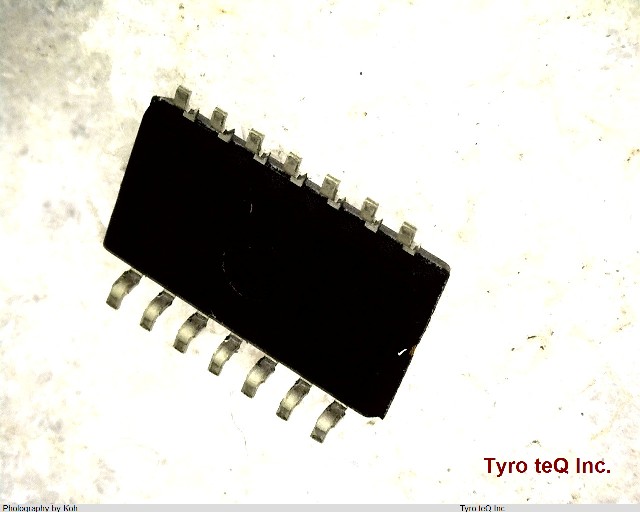

CD74HC4002NSR データシート

Name: CD74HC4002NSR
Brand: TI
SKU: 130379967-0000-0000-0000

CD74HC4002NSR - TI の商品詳細ページです。

２営業日以内に回答いたします

CD74HC4002NSR の詳細情報

型番	CD74HC4002NSR
メーカー	TI
データシート
Family	HC/UH
JESD-30 Code	R-PDSO-G14
Length	10.2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	NOR GATE
Max I(ol)	0.004 Amp
Number of Functions	2
Number of Inputs	4
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	30 ns
Propagation Delay (tpd)	150 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	MILITARY
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
