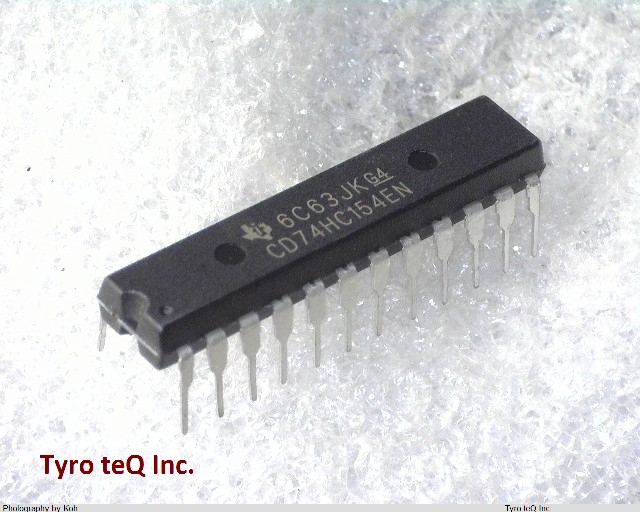

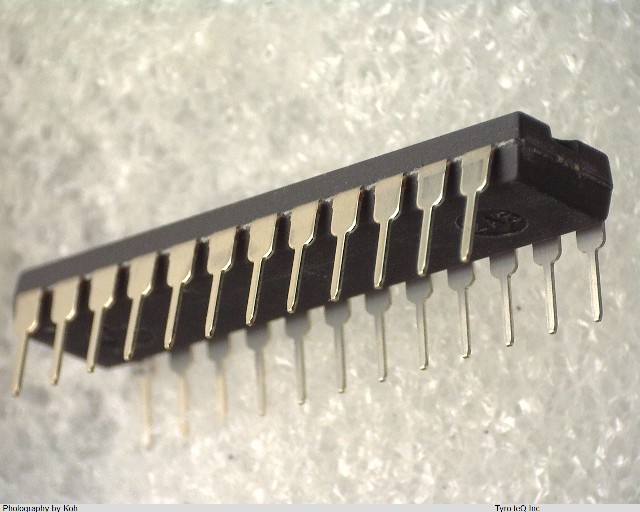

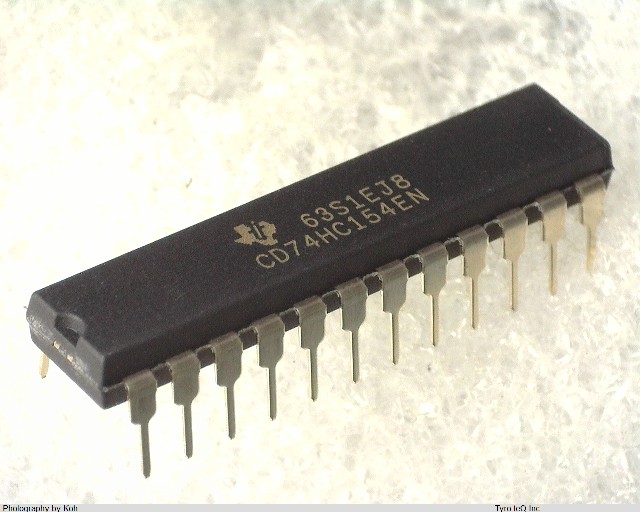

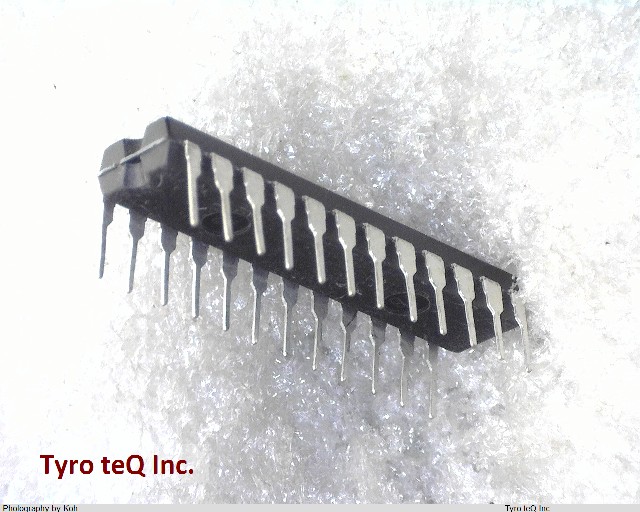

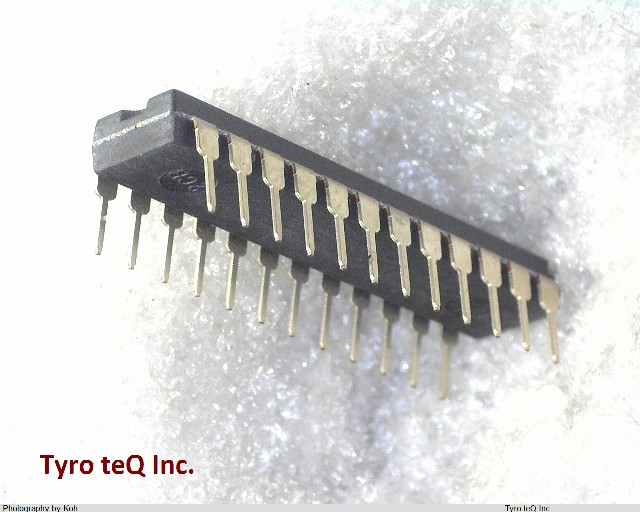

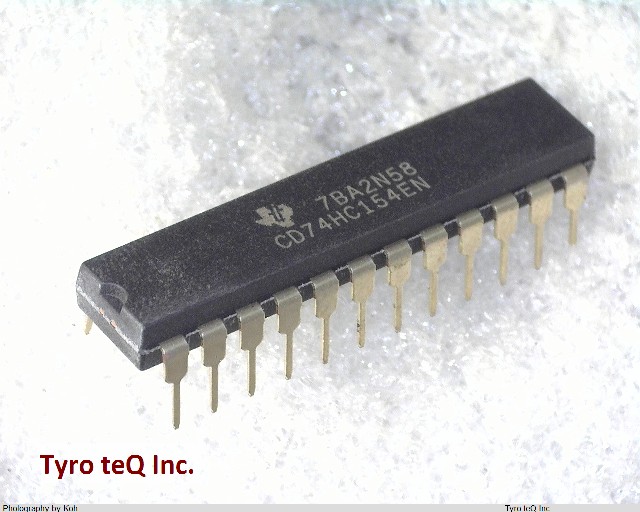

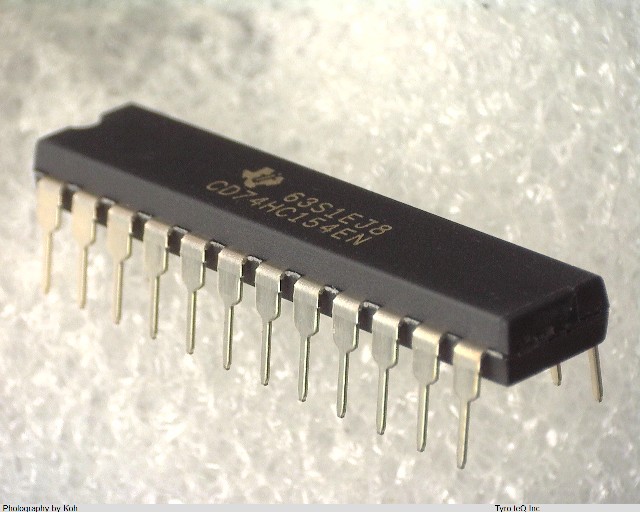

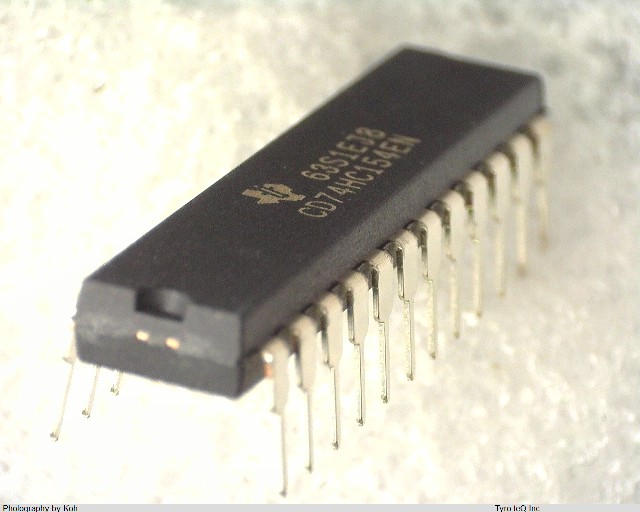

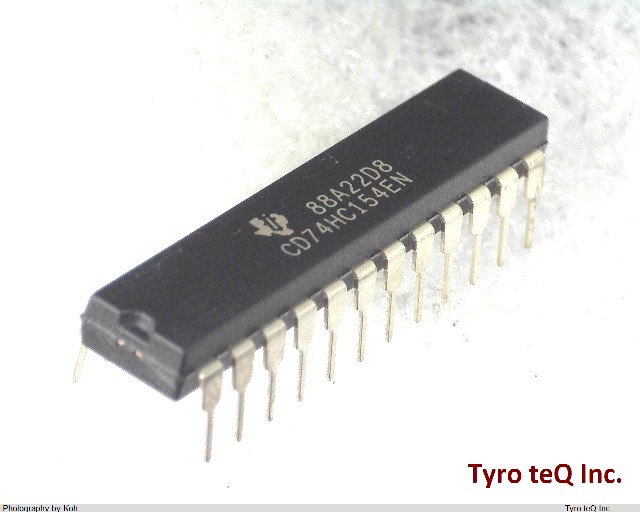

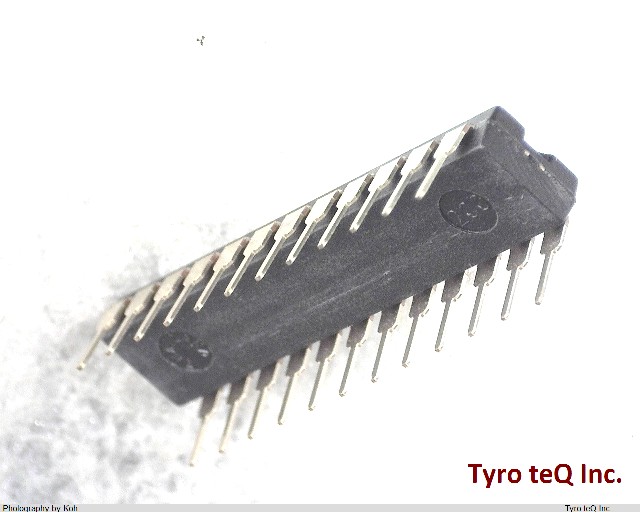

CD74HC154EN

Name: CD74HC154EN
Brand: TI
SKU: 130584268-0000-0000-0000

CD74HC154EN - TI の商品詳細ページです。

２営業日以内に回答いたします

CD74HC154EN の詳細情報

型番	CD74HC154EN
メーカー	TI
Additional Feature	2 ENABLE INPUTS
Family	HC/UH
Input Conditioning	STANDARD
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	31.64 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.004 Amp
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	44 ns
Propagation Delay (tpd)	220 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
