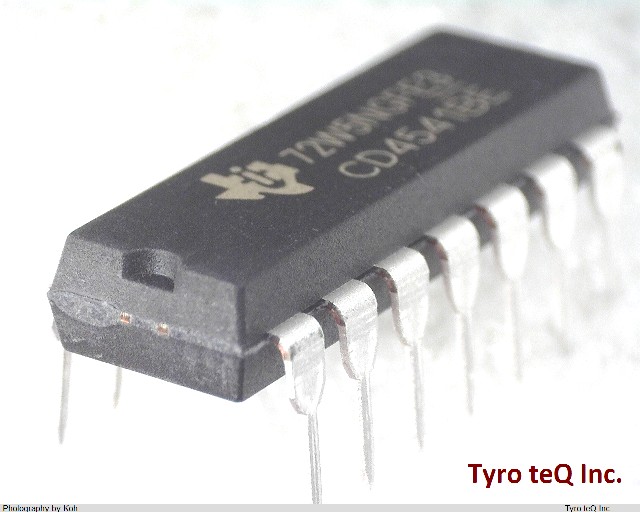

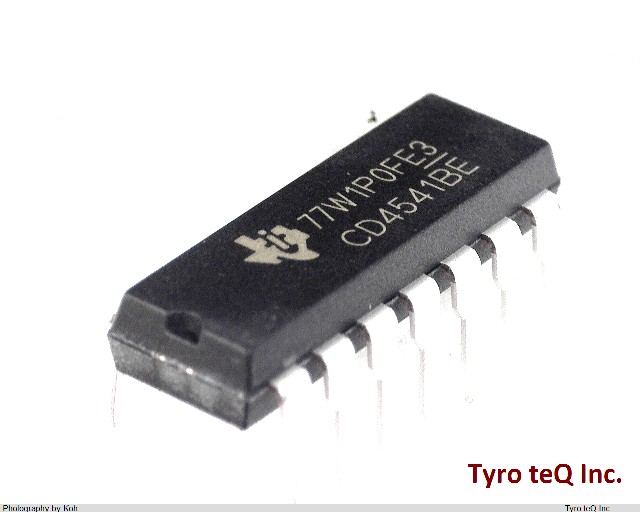

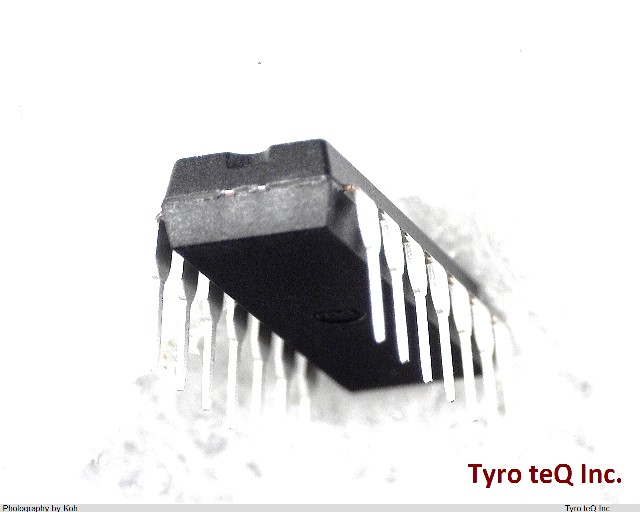

CD4541BEE4 データシート

Name: CD4541BEE4
Brand: TI
SKU: 130140151-0000-0000-0000

CD4541BEE4 - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|Programmable タイマ | 14ピン

CD4541BEE4 の詳細情報

型番	CD4541BEE4
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Count Direction	UP
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e3
Length	19.305 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BINARY COUNTER
Max I(ol)	0.004 Amp
Mode of Operation	SYNCHRONOUS
Number of Bits	16
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supply Current-Max (ICC)	0.1 mA
Prop. Delay@Nom-Sup	10000 ns
Propagation Delay (tpd)	18000 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	5.08 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	7.62 mm
