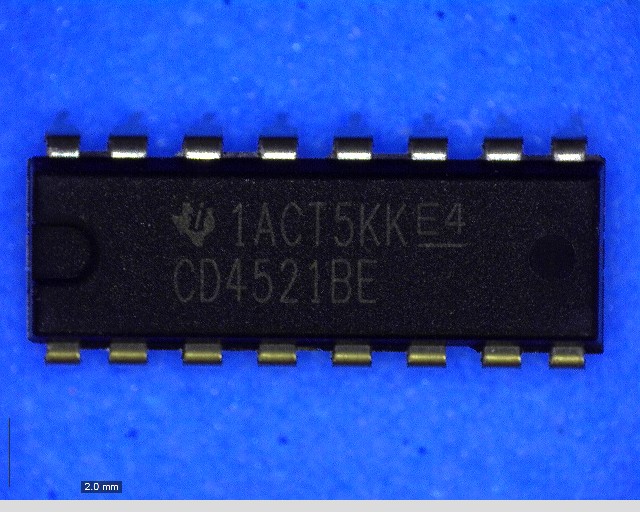

CD4521BEE4 データシート

Name: CD4521BEE4
Brand: TI
SKU: 130140073-0000-0000-0000

CD4521BEE4 - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC

CD4521BEE4 の詳細情報

型番	CD4521BEE4
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Additional Feature	OUTPUTS FROM LAST 7 STAGES AVAILABLE
Count Direction	UP
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e4
Length	19.305 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BINARY COUNTER
Max Frequency@Nom-Sup	2000000 Hz
Max I(ol)	0.0024 Amp
Mode of Operation	ASYNCHRONOUS
Number of Bits	24
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Power Supply Current-Max (ICC)	3 mA
Prop. Delay@Nom-Sup	4500 ns
Propagation Delay (tpd)	12000 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	5.08 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	NEGATIVE EDGE
Width	7.62 mm
fmax-Min	6.5 MHz
