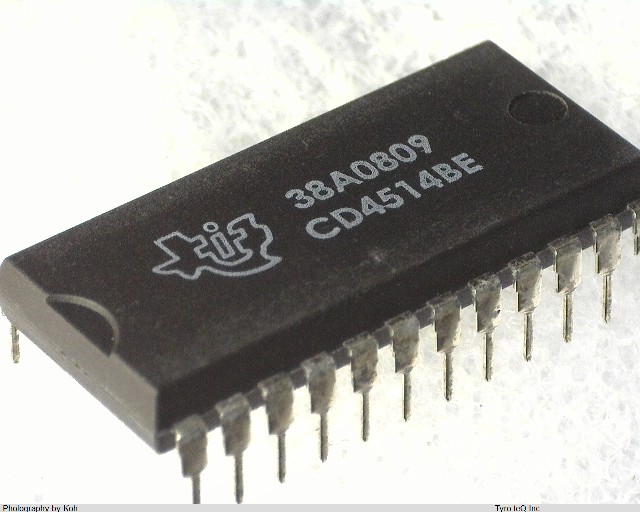

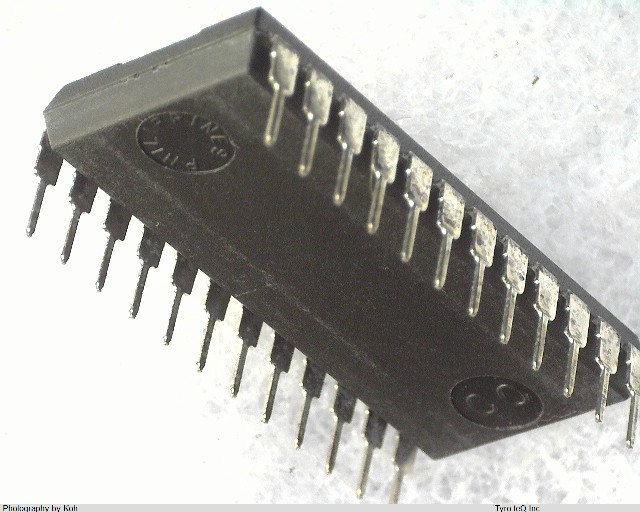

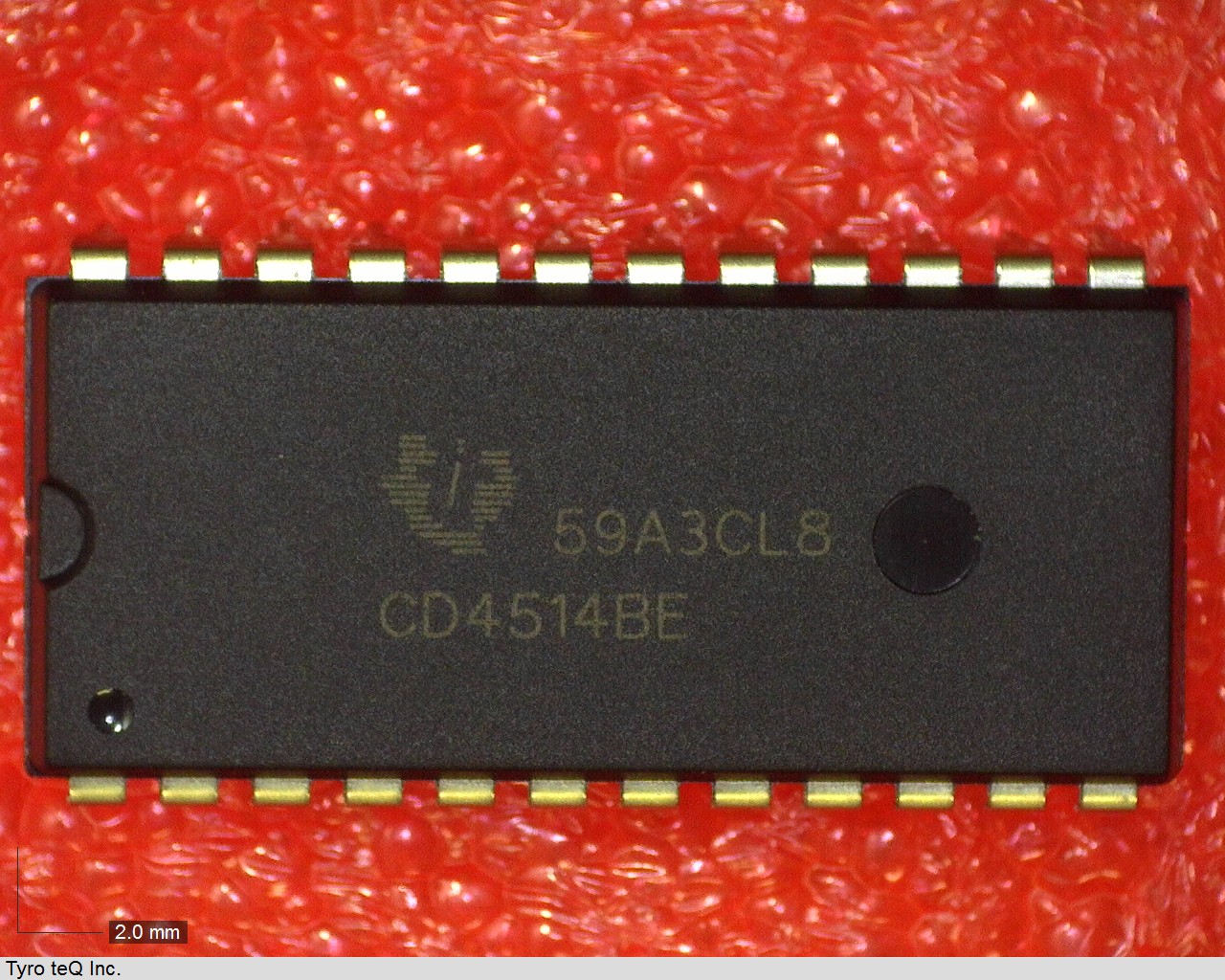

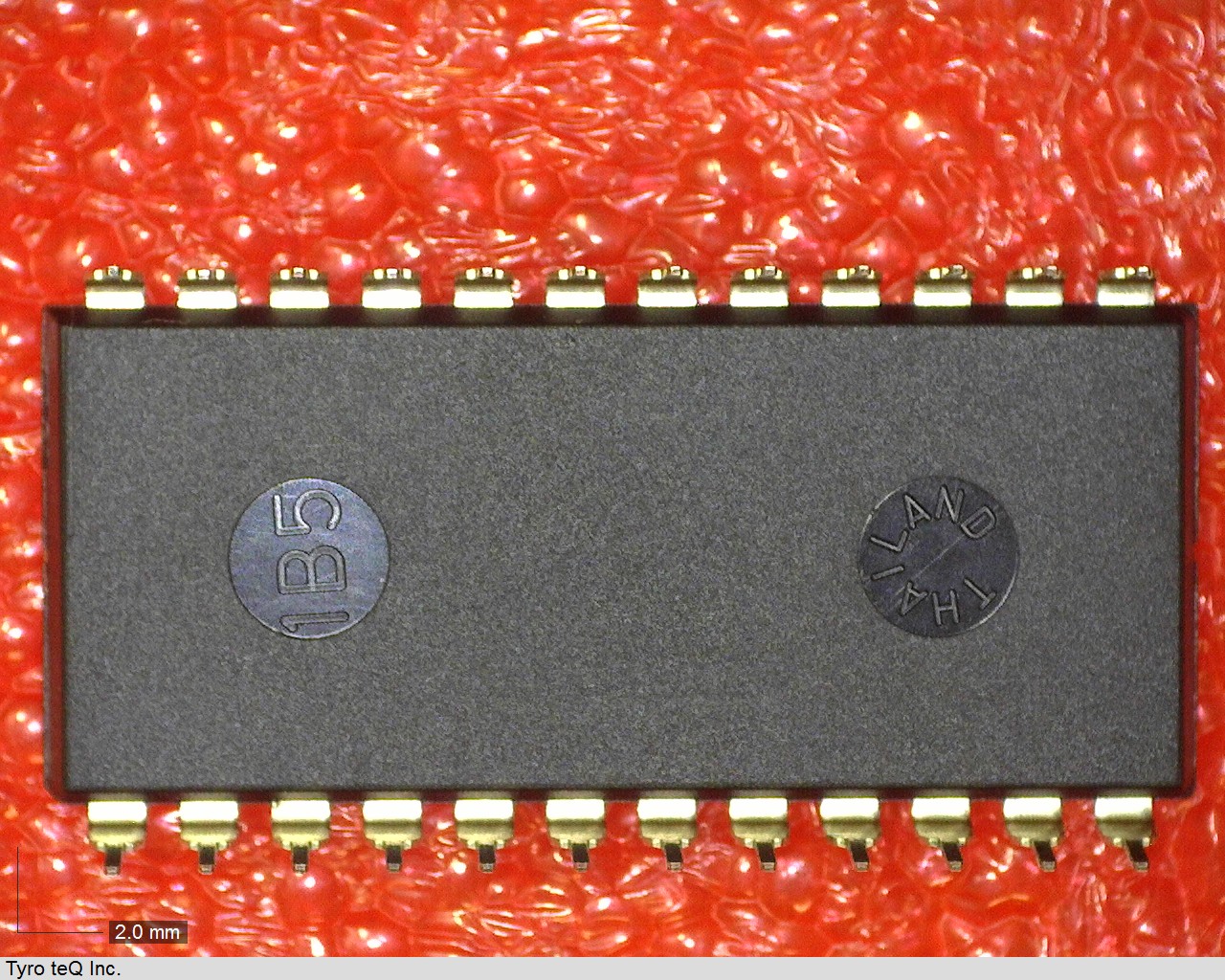

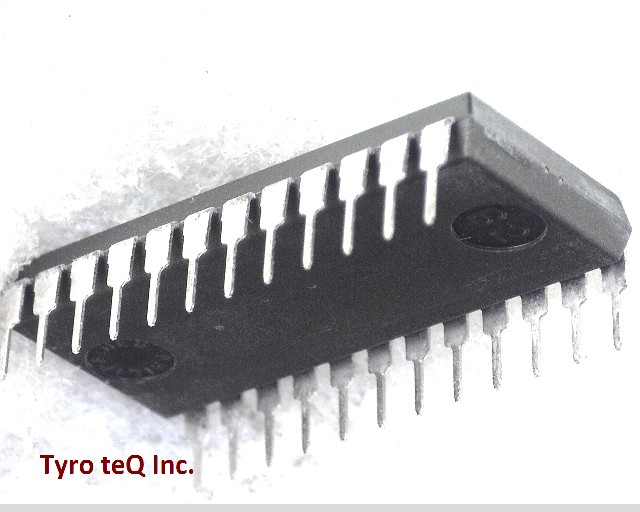

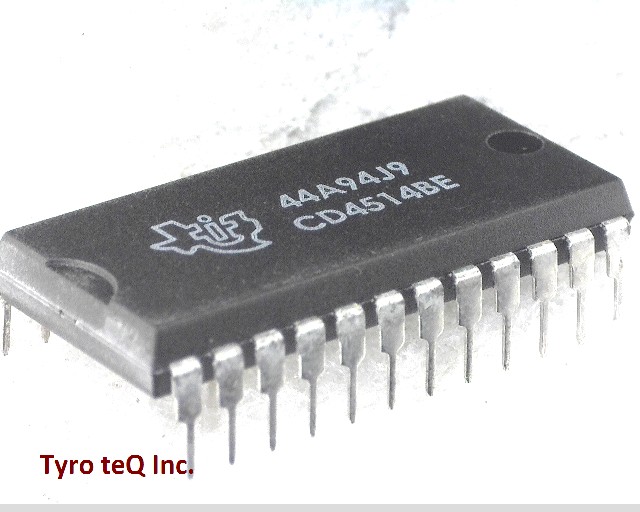

CD4514BE データシート

Name: CD4514BE
Brand: TI
SKU: 130021327-0000-0000-0000

CD4514BE - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パーッケージ：PDIP

CD4514BE の詳細情報

型番	CD4514BE
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Additional Feature	ADDRESS LATCHES
Family	4000/14000/40000
Input Conditioning	LATCHED
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	31.75 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.00042 Amp
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Prop. Delay@Nom-Sup	970 ns
Propagation Delay (tpd)	970 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
