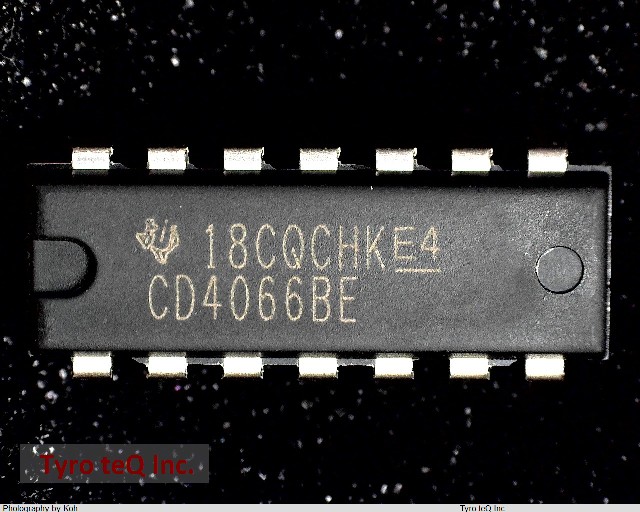

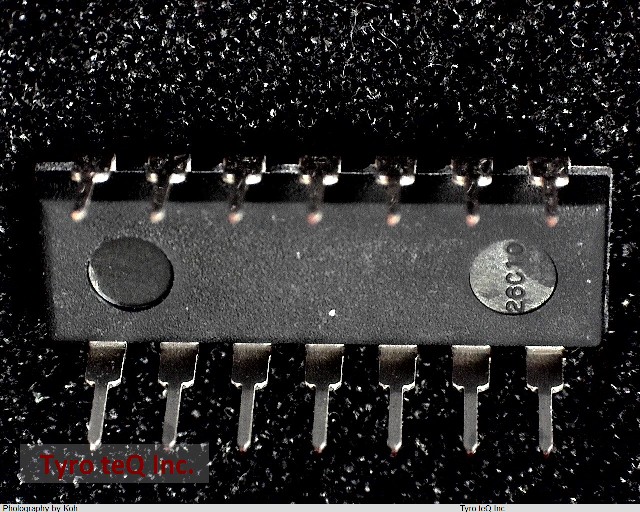

CD4066BE データシート

Name: CD4066BE
Brand: TI
SKU: 130005399-0000-0000-0000

CD4066BE - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|4回路バイラテラル・スイッチ（アナログスイッチ） | 14ピン|パーッケージ：PDIP

CD4066BE の詳細情報

型番	CD4066BE
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Analog IC - Other Type	SPST
Bandwidth-Nom	40 kHz
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.17 mm
Neg Supply Voltage-Nom (Vsup)	-5 V
Normal Position	NO V
Number of Channels	1
Number of Functions	4
Number of Terminals	14
On-state Resistance Match-Nom	15 ohm
On-state Resistance-Max (Ron)	240 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	3.9 mm
Signal Current-Max	0.025 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.03 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Switch-off Time-Max	70 ns
Switch-on Time-Max	70 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	6.35 mm
