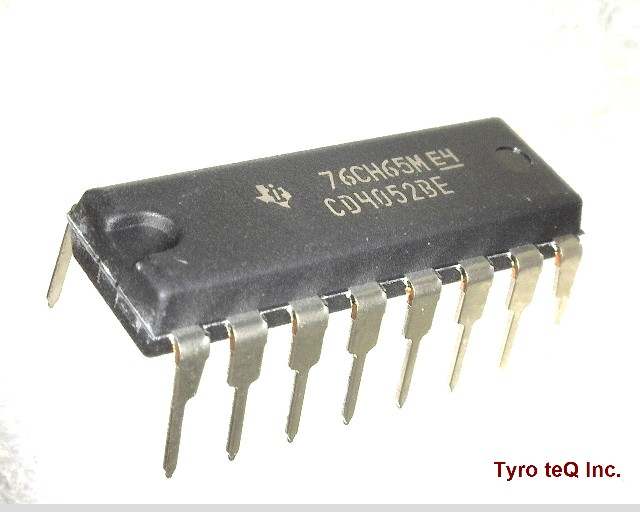

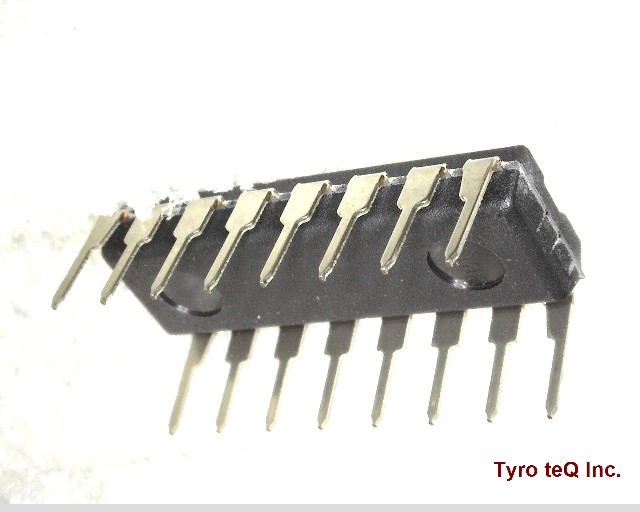

CD4052BE データシート

Name: CD4052BE
Brand: TI
SKU: 130021157-0000-0000-0000

CD4052BE - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|2回路4chアナログ・マルチプレクサ/デマルチプレクサ（アナログスイッチ） | 16ピン|パーッケージ：PDIP

CD4052BE の詳細情報

型番	CD4052BE
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Analog IC - Other Type	DIFFERENTIAL MULTIPLEXER
Bandwidth-Nom	25 kHz
Input Voltage-Max	20.5 V
Input Voltage-Min	-0.5 V
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.17 mm
Neg Supply Voltage-Nom (Vsup)	-5 V
Normal Position	NC V
Number of Channels	2
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	40 dB
On-state Resistance Match-Nom	15 ohm
On-state Resistance-Max (Ron)	240 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Signal Current-Max	0.01 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.6 mA
Supply Voltage-Max (Vsup)	10 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Switch-off Time-Max	450 ns
Switch-on Time-Max	450 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
