CD4013BME4 データシート

Name: CD4013BME4
Brand: TI
SKU: 130138622-0000-0000-0000

CD4013BME4 - TI の商品詳細ページです。

２営業日以内に回答いたします

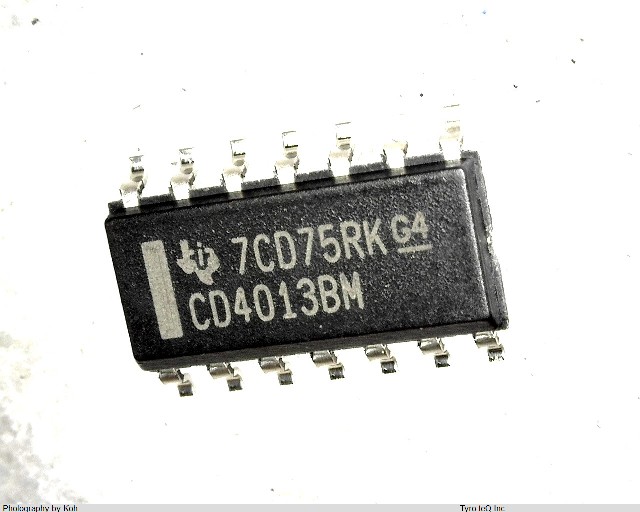

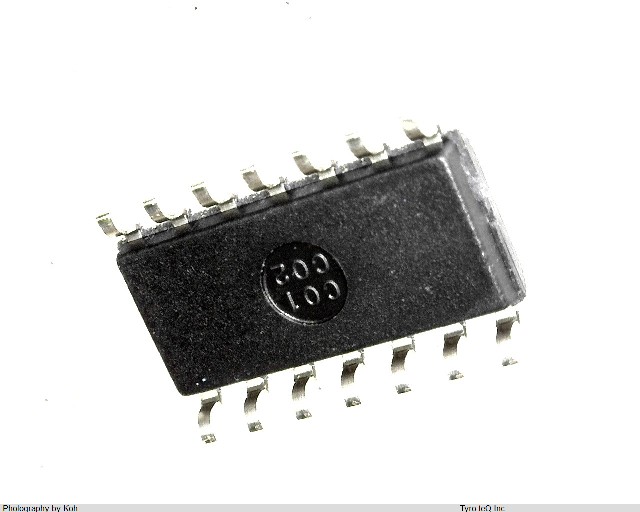

CMOS標準ロジックIC|2回路D-フリップフロップ | 14ピン|パーッケージ：SOIC

CD4013BME4 の詳細情報

型番	CD4013BME4
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Family	4000/14000/40000
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e4
Length	8.65 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	3500000 Hz
Max I(ol)	0.0068 Amp
Moisture Sensitivity Level	1
Number of Bits	1
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	260
Power Supplies	5/15 V
Power Supply Current-Max (ICC)	0.6 mA
Prop. Delay@Nom-Sup	300 ns
Propagation Delay (tpd)	300 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	FF/Latch
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	3.9 mm
fmax-Min	12 MHz
