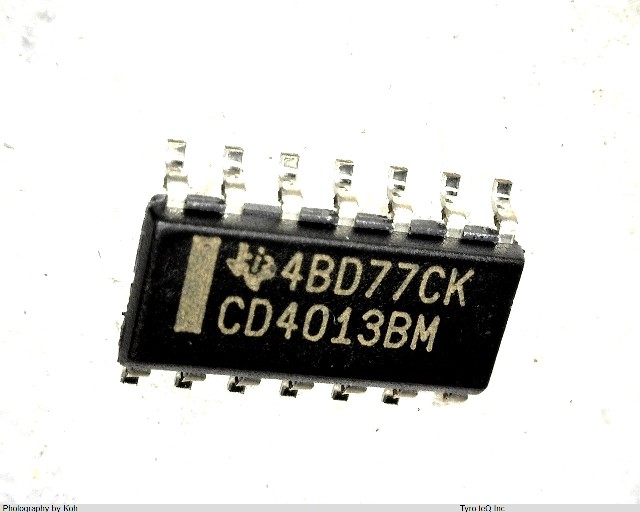

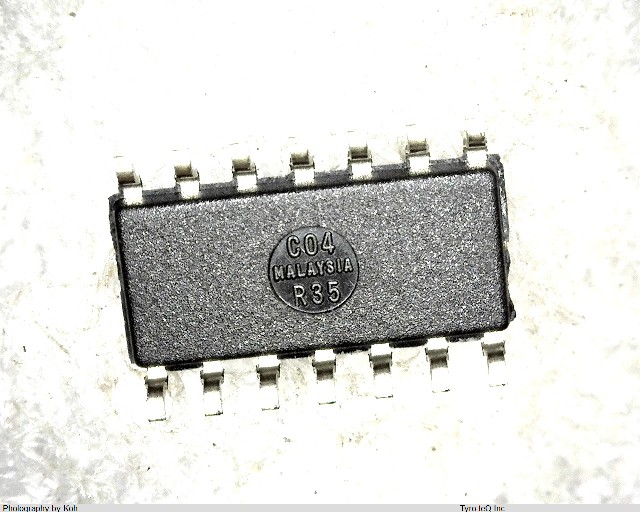

CD4013BM データシート

Name: CD4013BM
Brand: TI
SKU: 130005289-0000-0000-0000

CD4013BM - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|2回路D-フリップフロップ | 14ピン|パーッケージ：SOIC

CD4013BM の詳細情報

型番	CD4013BM
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Additional Feature	LG-MAX
Family	4000/14000/40000
JESD-30 Code	R-GDFP-F14
JESD-609 Code	e0
Length	8.65 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	2500000 Hz
Max I(ol)	0.00036 Amp
Moisture Sensitivity Level	1
Number of Bits	1
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	CERAMIC
Package Code	DFP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3/15 V
Power Supply Current-Max (ICC)	0.6 mA
Prop. Delay@Nom-Sup	300 ns
Propagation Delay (tpd)	300 ns
Qualification Status	Not Qualified
Screening Level	38535Q/M;38534H;883B
Seated Height-Max	1.75 mm
Sub Category	FF/Latch
Supply Voltage-Max (Vsup)	15 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	FLAT
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	3.9 mm
fmax-Min	2.5 MHz
