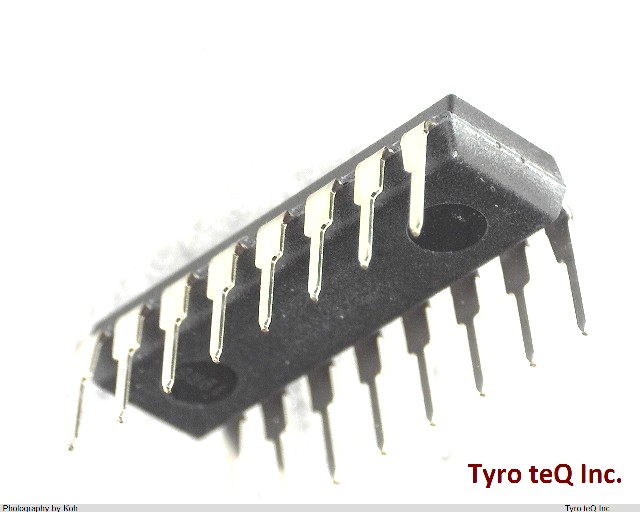

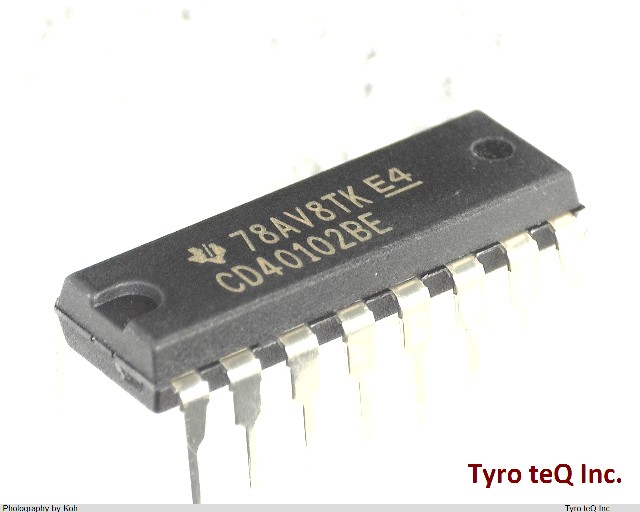

CD40102BE

Name: CD40102BE
Brand: TI
SKU: 130585724-0000-0000-0000

CD40102BE - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パーッケージ：PDIP

CD40102BE の詳細情報

型番	CD40102BE
メーカー	TI
種別	CMOS標準ロジックIC
Additional Feature	TCO OUTPUT; RESET TO MAX COUNT
Count Direction	DOWN
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.3 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	YES
Logic IC Type	BINARY COUNTER
Max Frequency@Nom-Sup	700000 Hz
Max I(ol)	0.00042 Amp
Mode of Operation	SYNCHRONOUS
Number of Bits	8
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Power Supply Current-Max (ICC)	0.03 mA
Prop. Delay@Nom-Sup	260 ns
Propagation Delay (tpd)	600 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	6.35 mm
fmax-Min	2.4 MHz
