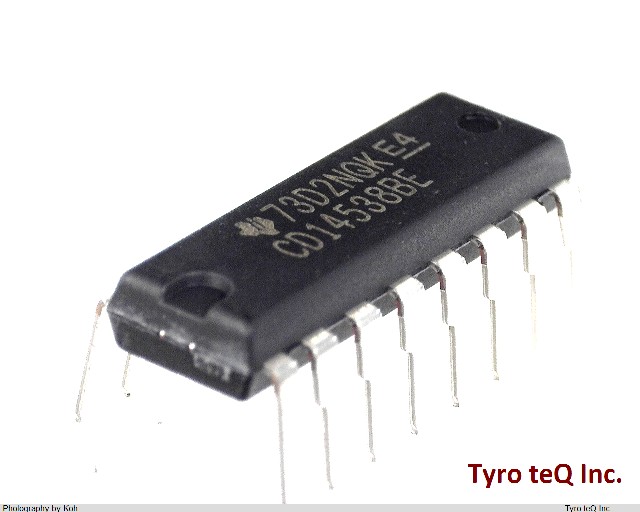

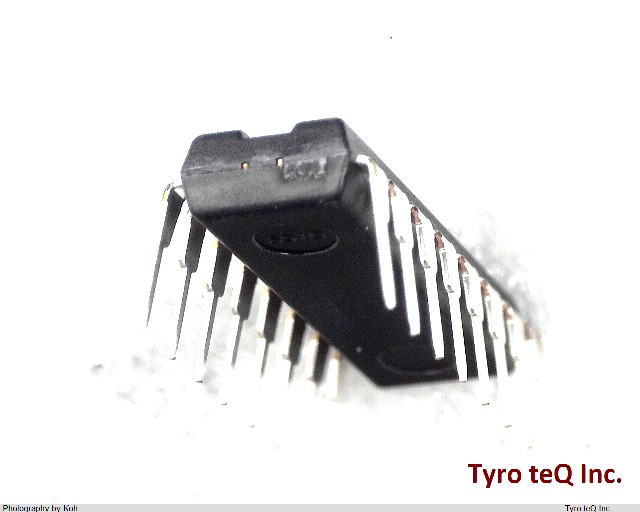

CD14538BE データシート

Name: CD14538BE
Brand: TI
SKU: 130005179-0000-0000-0000

CD14538BE - TI の商品詳細ページです。

２営業日以内に回答いたします

CD14538BE の詳細情報

型番	CD14538BE
メーカー	TI
データシート
Additional Feature	RETRIGGERABLE
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.17 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Max I(ol)	0.004 Amp
Number of Bits	2
Number of Data/Clock Inputs	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Power Supply Current-Max (ICC)	0.3 mA
Propagation Delay (tpd)	600 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
