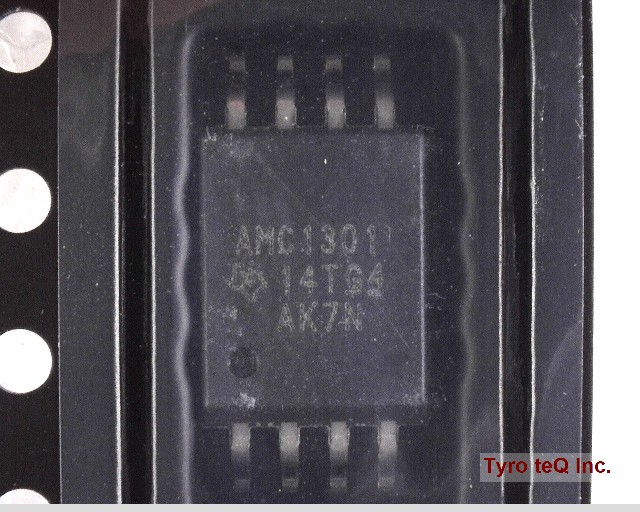

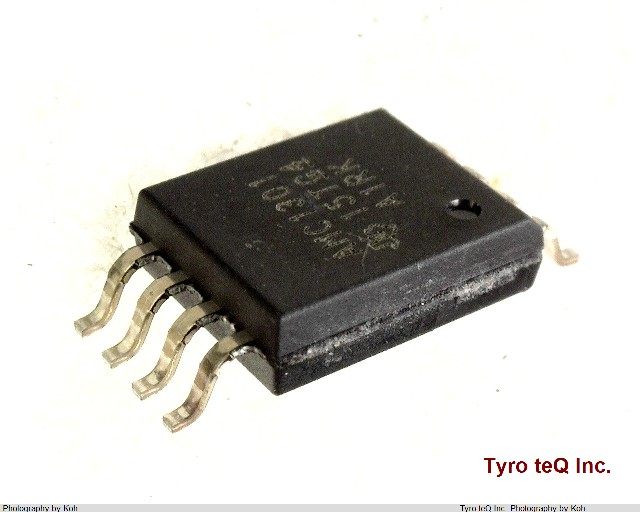

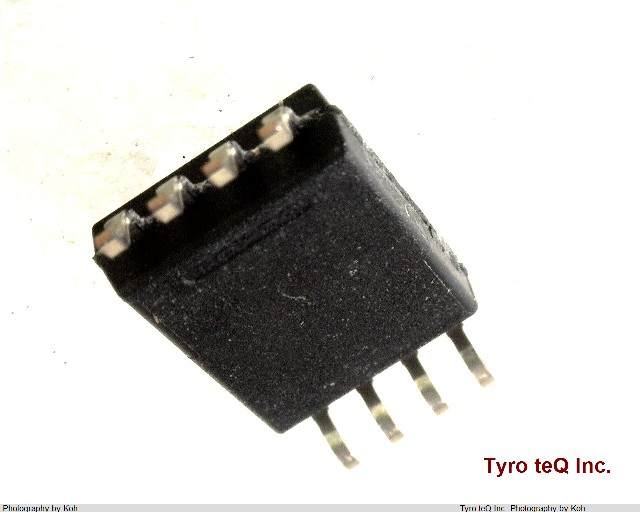

AMC1301DWV

Name: AMC1301DWV
Brand: TI
SKU: 110266452-0000-0000-0000

AMC1301DWV - TI の商品詳細ページです。

２営業日以内に回答いたします

AMC1301DWV の詳細情報

型番	AMC1301DWV
メーカー	TI
Amplifier Type	ISOLATION AMPLIFIER
Analog Input Voltage-Max	0.25 V
Analog Input Voltage-Min	-0.25 V
Bandwidth (3dB)-Nom	210 MHz
Common Mode Voltage-Max	1.49 V
Input Offset Voltage-Max	200 uV
Isolation Voltage-Min	5000 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	7.5 mm
Moisture Sensitivity Level	3
Non-linearity-Max	0.03 %
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Seated Height-Max	2.8 mm
Sub Category	Isolation Amplifier
Supply Current-Max	8.3 mA
Supply Voltage Limit-Max	5.5 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.85 mm
