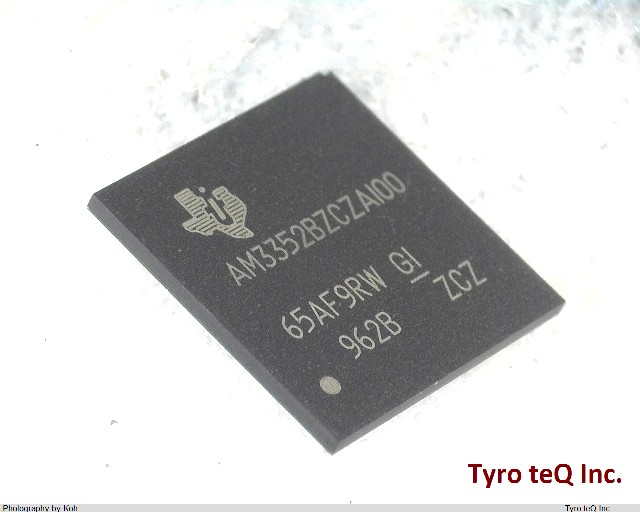

AM3352BZCZA100

Name: AM3352BZCZA100
Brand: TI
SKU: 110235963-0000-0000-0000

AM3352BZCZA100 - TI の商品詳細ページです。

２営業日以内に回答いたします

AM3352BZCZA100 の詳細情報

型番	AM3352BZCZA100
メーカー	TI
Address Bus Width	28
Bit Size	32
Boundary Scan	YES
Clock Frequency-Max	26 MHz
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	YES
JESD-30 Code	S-PBGA-B324
JESD-609 Code	e1
Length	15 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of DMA Channels	64
Number of Terminals	324
On Chip Data RAM Width	8
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFBGA
Package Equivalence Code	BGA324,18X18,32
Package Shape	SQUARE
Package Style	GRID ARRAY, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	0.95/1.1 V
Qualification Status	Not Qualified
RAM (words)	131072
Seated Height-Max	1.4 mm
Speed	1000 rpm
Sub Category	Microprocessors
Supply Current-Max	400 mA
Supply Voltage-Max	1.378 V
Supply Voltage-Min	1.272 V
Supply Voltage-Nom	1.325 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR, RISC
