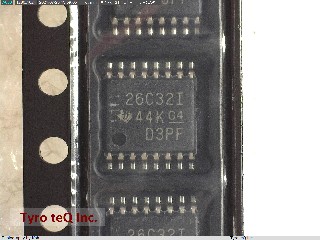

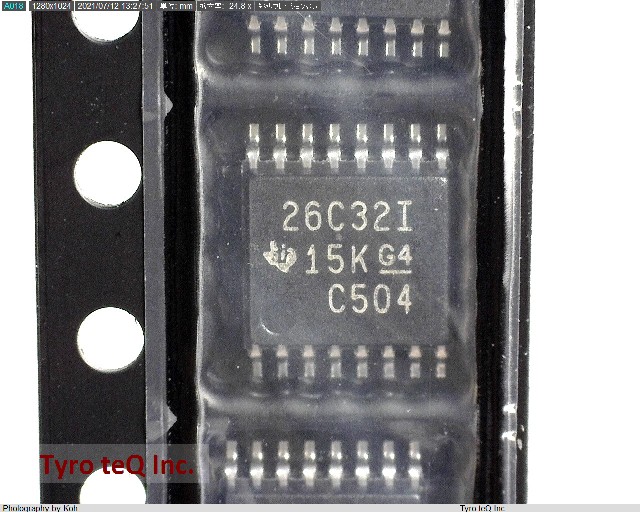

AM26C32IPWR データシート

Name: AM26C32IPWR
Brand: TI
SKU: 110036718-0000-0000-0000

AM26C32IPWR - TI の商品詳細ページです。

２営業日以内に回答いたします

AM26C32IPWR の詳細情報

型番	AM26C32IPWR
メーカー	TI
データシート
Differential Output	NO
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE RECEIVER
Interface Standard	EIA-422-B; TIA-422-B; EIA-423-B; TIA-423-B; V.10; V.11
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e4
Length	5 mm
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Low Current-Max	0.006 Amp
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	27 ns
Receiver Number of Bits	4
Seated Height-Max	1.2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	15 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	5.5 V
Supply Voltage1-Min	4.5 V
Supply Voltage1-Nom	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
