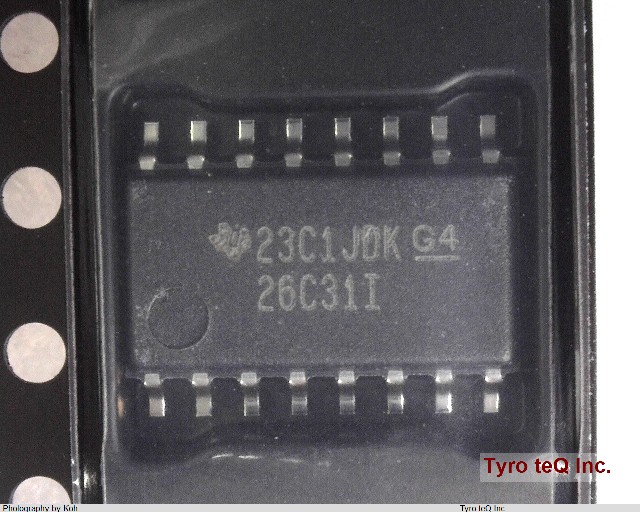

AM26C31INSR データシート

Name: AM26C31INSR
Brand: TI
SKU: 110000446-0000-0000-0000

AM26C31INSR - TI の商品詳細ページです。

２営業日以内に回答いたします

AM26C31INSR の詳細情報

型番	AM26C31INSR
メーカー	TI
データシート
Differential Output	YES
Driver Number of Bits	4
High Level Input Current-Max	1.0E-6 Amp
Input Characteristics	STANDARD
Interface IC Type	LINE DRIVER
Interface Standard	EIA-422-B; TIA-422-B; V.11
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e4
Length	10.2 mm
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	2 V
Output Characteristics	3-STATE
Output Low Current-Max	0.02 Amp
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Seated Height-Max	2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	3 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	5.5 V
Supply Voltage1-Min	4.5 V
Supply Voltage1-Nom	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	12 ns
Width	5.3 mm
