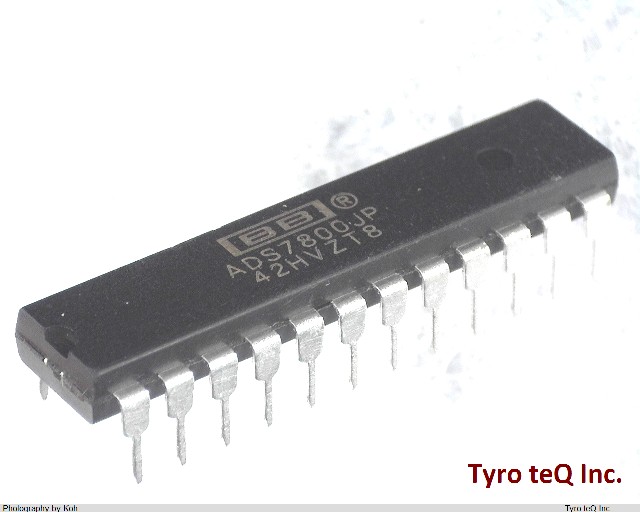

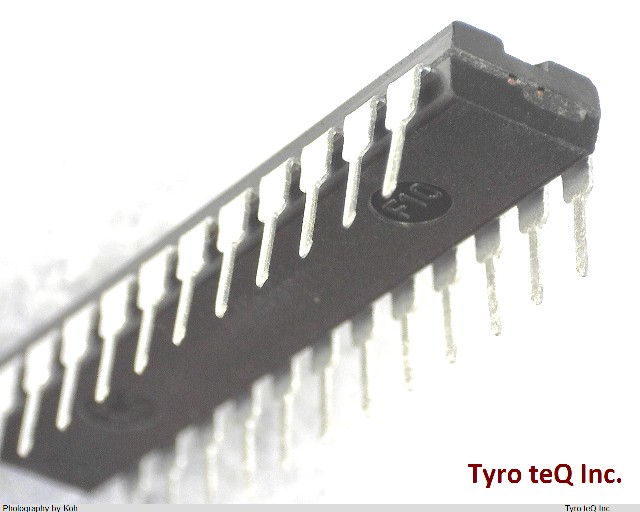

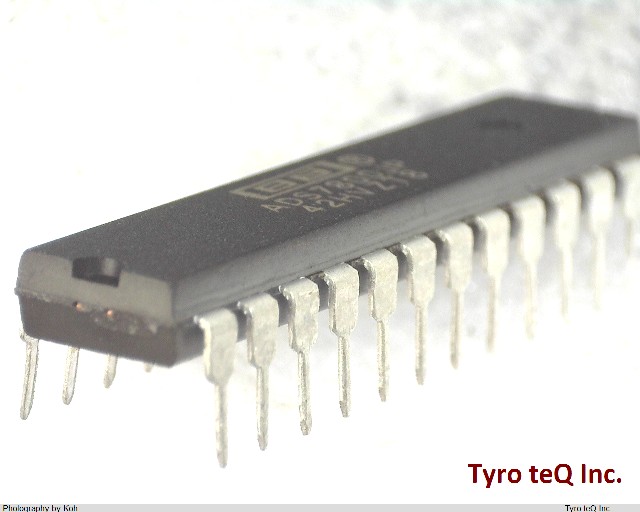

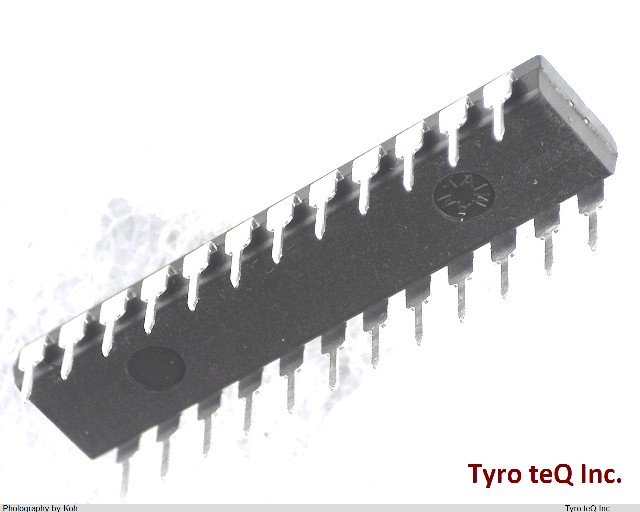

ADS7800JP データシート

Name: ADS7800JP
Brand: TI
SKU: 110258728-0000-0000-0000

ADS7800JP - TI の商品詳細ページです。

２営業日以内に回答いたします

ADS7800JP の詳細情報

型番	ADS7800JP
メーカー	TI
データシート
Analog Input Voltage-Max	10 V
Analog Input Voltage-Min	-20 V
Conversion Time-Max	2.7 us
Converter Type	A/D CONVERTER
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	30.23 mm
Linearity Error-Max (EL)	0.024 %
Negative Supply Voltage-Nom	-15 V
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	BINARY, OFFSET BINARY
Output Format	PARALLEL, 8 BITS, PARALLEL, 4 BITS, PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5,-15 V
Qualification Status	Not Qualified
Sample Rate	0.333 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	4.32 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	25 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
