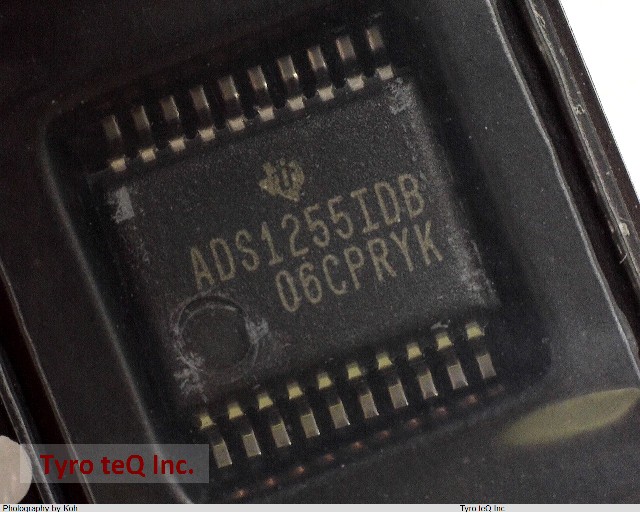

ADS1255IDBT データシート

Name: ADS1255IDBT
Brand: TI
SKU: 110026520-0000-0000-0000

ADS1255IDBT - TI の商品詳細ページです。

２営業日以内に回答いたします

ADS1255IDBT の詳細情報

型番	ADS1255IDBT
メーカー	TI
データシート
Analog Input Voltage-Max	5.25 V
Analog Input Voltage-Min	-5 V
Converter Type	ADC, DELTA-SIGMA
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	7.2 mm
Linearity Error-Max (EL)	0.001 %
Moisture Sensitivity Level	2
Number of Analog In Channels	2
Number of Bits	24
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8,5 V
Qualification Status	Not Qualified
Sample Rate	0.03 MHz
Seated Height-Max	2 mm
Sub Category	Other Converters
Supply Current-Max	50 mA
Supply Voltage-Min	1.8 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
