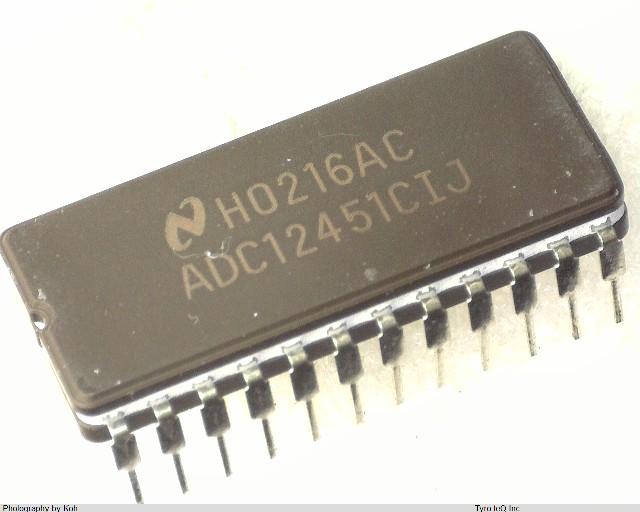

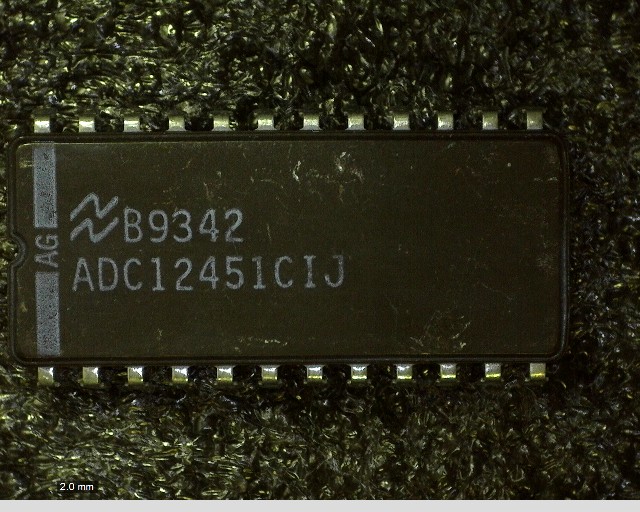

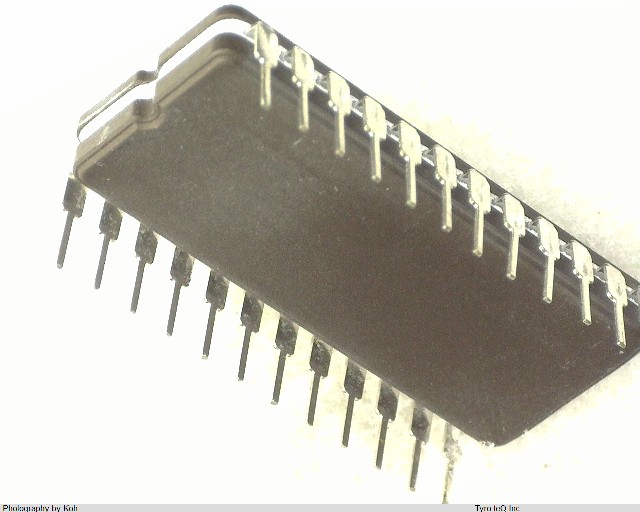

ADC12451CIJ データシート

Name: ADC12451CIJ
Brand: TI
SKU: 110070501-0000-0000-0000

ADC12451CIJ - TI の商品詳細ページです。

２営業日以内に回答いたします

ADC12451CIJ の詳細情報

型番	ADC12451CIJ
メーカー	TI
データシート
Analog Input Voltage-Max	5.05 V
Analog Input Voltage-Min	-5.55 V
Conversion Time-Max	15.65 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-GDIP-T24
JESD-609 Code	e0
Length	32.766 mm
Linearity Error-Max (EL)	0.061 %
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-5 V
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	PARALLEL, 8 BITS
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Sample Rate	0.083 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	4.572 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	10 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn63Pb37)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
