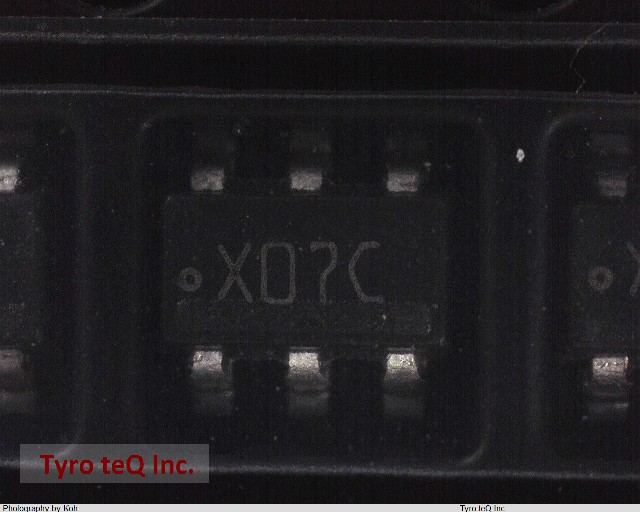

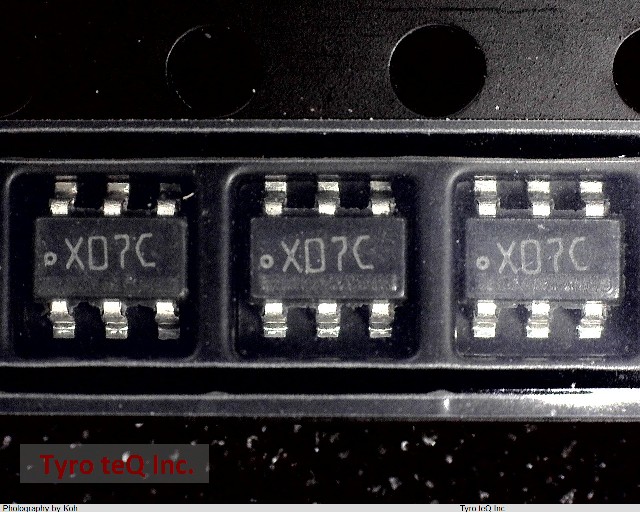

ADC121S021CIMF/NOPB

Name: ADC121S021CIMF/NOPB
Brand: TI
SKU: 110230185-0000-0000-0000

ADC121S021CIMF/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

ADC121S021CIMF/NOPB の詳細情報

型番	ADC121S021CIMF/NOPB
メーカー	TI
Analog Input Voltage-Max	5.25 V
Analog Input Voltage-Min	0 V
Converter Type	A/D CONVERTER
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e3
Length	2.9 mm
Linearity Error-Max (EL)	0.024 %
Moisture Sensitivity Level	1
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	6
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Sample Rate	0.2 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	1.45 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	2.8 mA
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	1.6 mm
