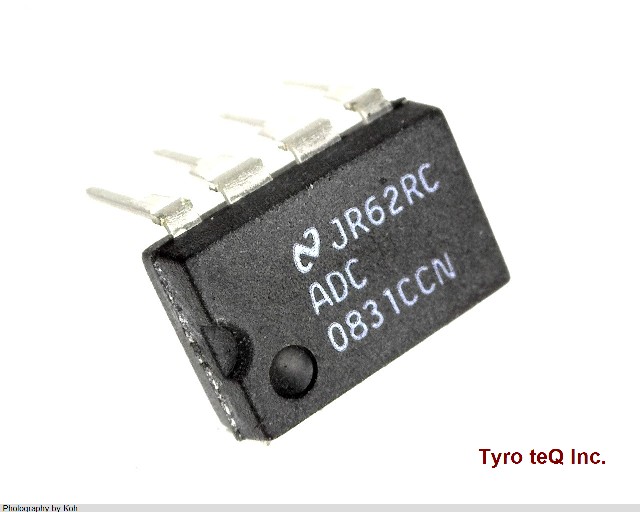

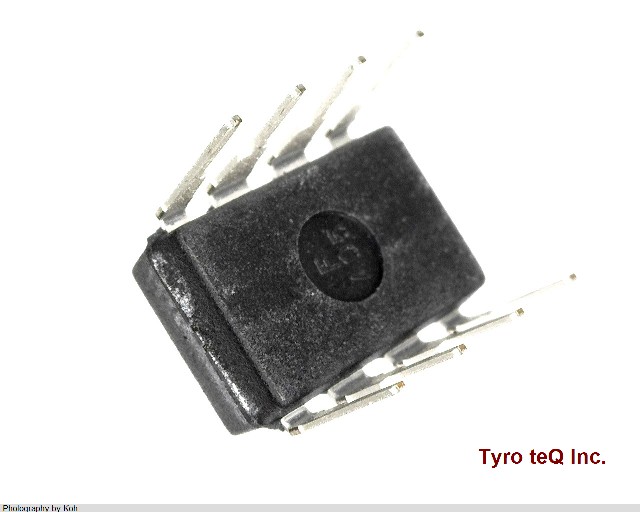

ADC0831CCN/NOPB
1
-
- 個
２営業日以内に回答いたします
ADC0831CCN/NOPB の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | ADC0831CCN/NOPB |
|---|---|
| メーカー | TI |
| Analog Input Voltage-Max | 5.05 V |
| Analog Input Voltage-Min | -0.05 V |
| Conversion Time-Max | 32 us |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e3 |
| Length | 9.817 mm |
| Linearity Error-Max (EL) | 0.3906 % |
| Moisture Sensitivity Level | 1 |
| Number of Analog In Channels | 1 |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Bit Code | BINARY |
| Output Format | SERIAL |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Sample Rate | 0.03125 MHz |
| Seated Height-Max | 5.08 mm |
| Sub Category | Analog to Digital Converters |
| Supply Current-Max | 2.5 mA |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Width | 7.62 mm |
| 会社名称 | Texas Instruments Incorporated. |
|---|---|
| 設立 | 1930 |
| 資本金 | USD 816 million |
| 所在地 | 12500 TI Boulevard Dallas, Texas 75243 USA |
| URL | http://www.ti.com/ |
