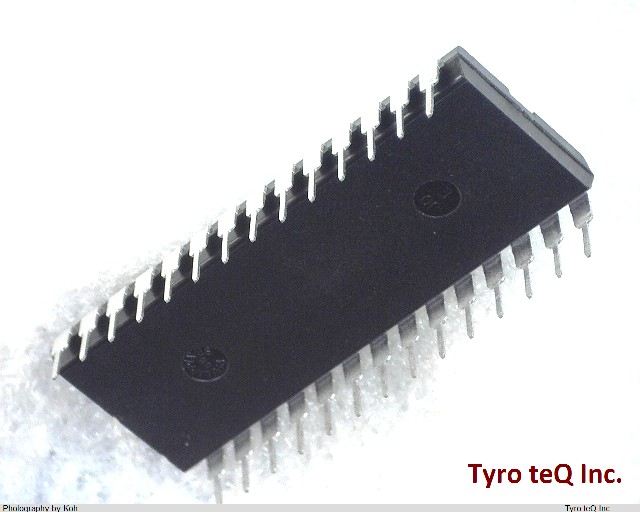

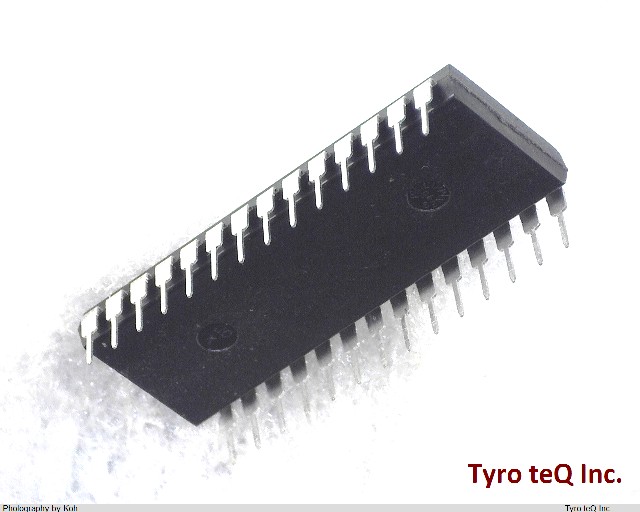

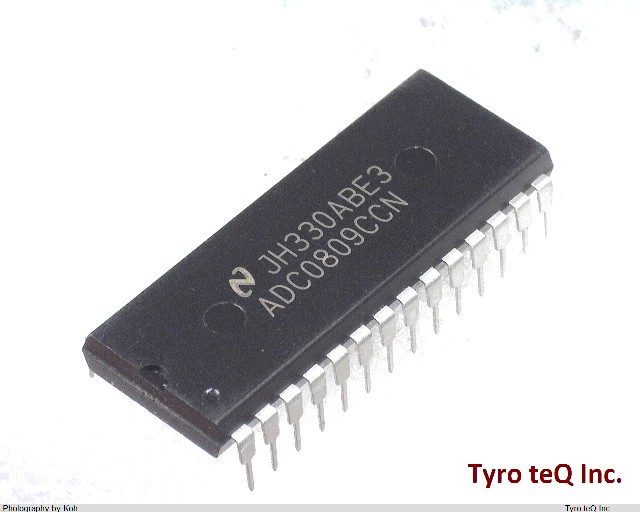

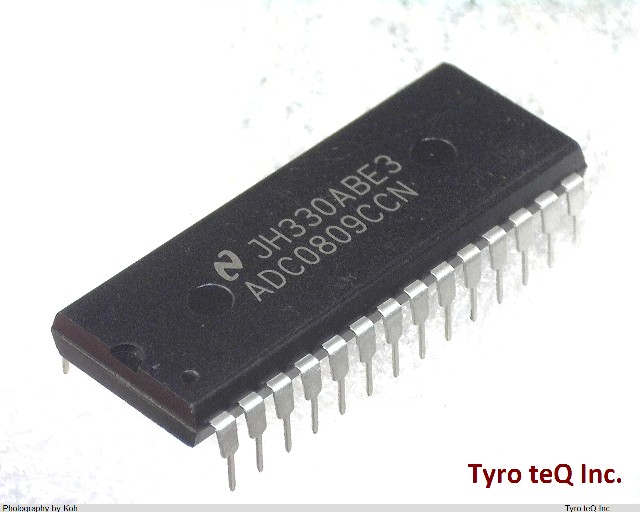

ADC0809CCN/NOPB データシート

Name: ADC0809CCN/NOPB
Brand: TI
SKU: 110230154-0000-0000-0000

ADC0809CCN/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

ADC0809CCN/NOPB の詳細情報

型番	ADC0809CCN/NOPB
メーカー	TI
データシート
Analog Input Voltage-Max	6.1 V
Analog Input Voltage-Min	-0.1 V
Conversion Time-Max	116 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e3
Length	35.725 mm
Linearity Error-Max (EL)	0.4883 %
Moisture Sensitivity Level	1
Number of Analog In Channels	8
Number of Bits	8
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, 8 BITS
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Sample Rate	0.01 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	5.08 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	15.24 mm
