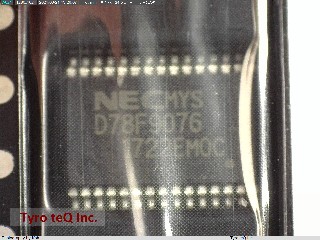

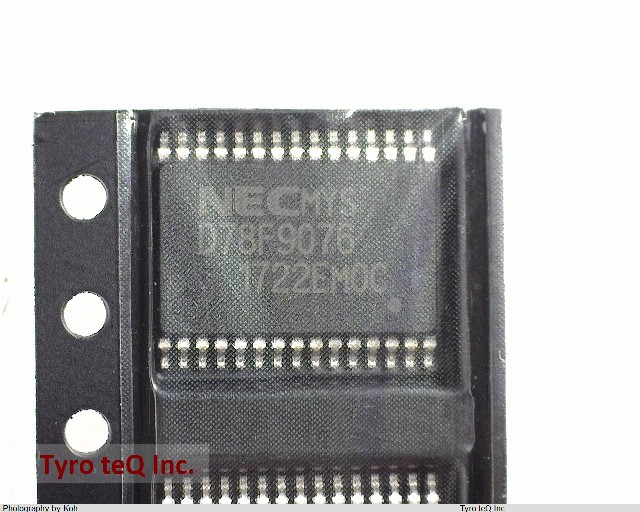

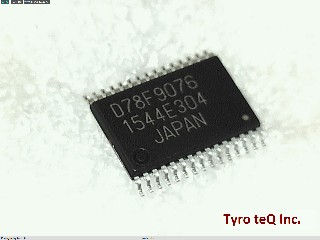

UPD78F9076MC-5A4-A データシート

Name: UPD78F9076MC-5A4-A
Brand: RENESAS
SKU: 310092457-0000-0000-0000

UPD78F9076MC-5A4-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPD78F9076MC-5A4-A の詳細情報

型番	UPD78F9076MC-5A4-A
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
ADC Channels	NO
Additional Feature	ALSO OPERATES AT 1.8 V MINIMUM SUPPLY AT 1.25 MHZ
Address Bus Width	0
Bit Size	8
CPU Family	UPD78K0
Clock Frequency-Max	5 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	R-PDSO-G30
JESD-609 Code	e6
Length	9.85 mm
Moisture Sensitivity Level	3
Number of I/O Lines	24
Number of Terminals	30
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SSOP30,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2/5 V
Qualification Status	Not Qualified
RAM (bytes)	256
ROM (words)	16384
ROM Programmability	FLASH
Seated Height-Max	1.4 mm
Speed	5 rpm
Sub Category	Microcontrollers
Supply Current-Max	15 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Width	6.1 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
