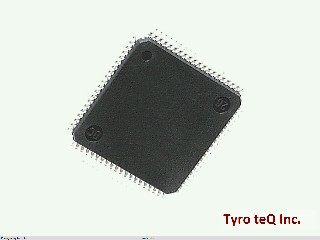

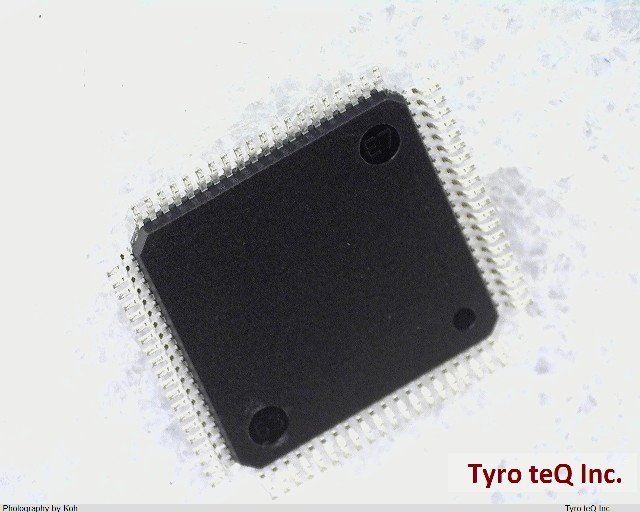

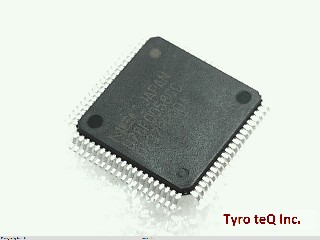

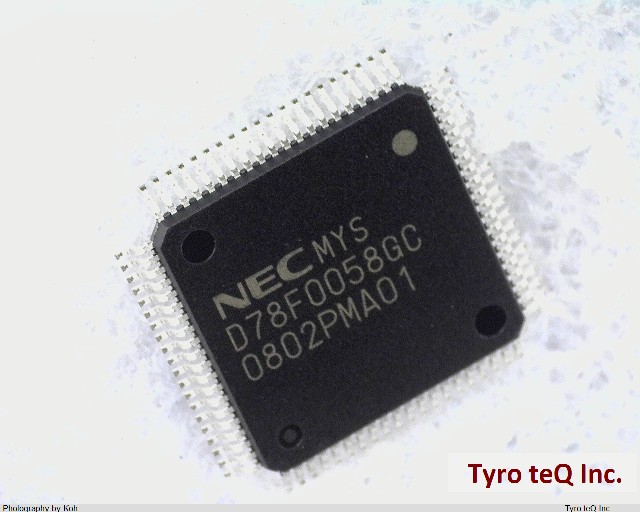

UPD78F0058GC-8BT-A データシート

Name: UPD78F0058GC-8BT-A
Brand: RENESAS
SKU: 310091949-0000-0000-0000

UPD78F0058GC-8BT-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPD78F0058GC-8BT-A の詳細情報

型番	UPD78F0058GC-8BT-A
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
ADC Channels	YES
Address Bus Width	16
Bit Size	8
CPU Family	UPD78K0
Clock Frequency-Max	5 MHz
DAC Channels	YES
DMA Channels	NO
External Data Bus Width	8
JESD-30 Code	S-PQFP-G80
JESD-609 Code	e6
Length	14 mm
Moisture Sensitivity Level	3
Number of I/O Lines	68
Number of Terminals	80
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LQFP
Package Equivalence Code	QFP80,.68SQ
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	2080
ROM (words)	61440
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	5 rpm
Sub Category	Microcontrollers
Supply Current-Max	25.7 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	10
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
