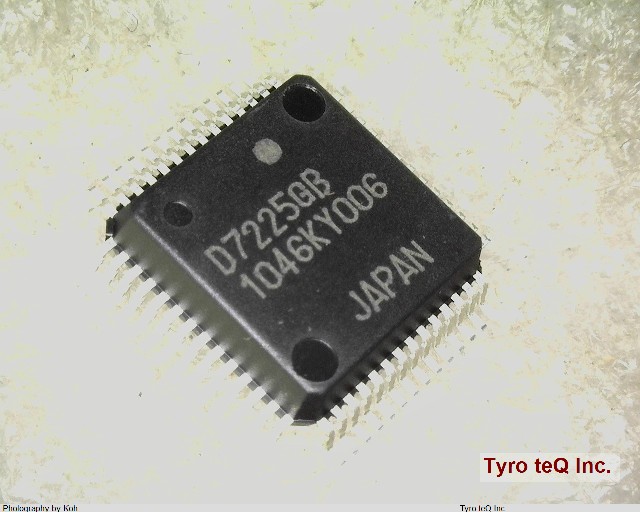

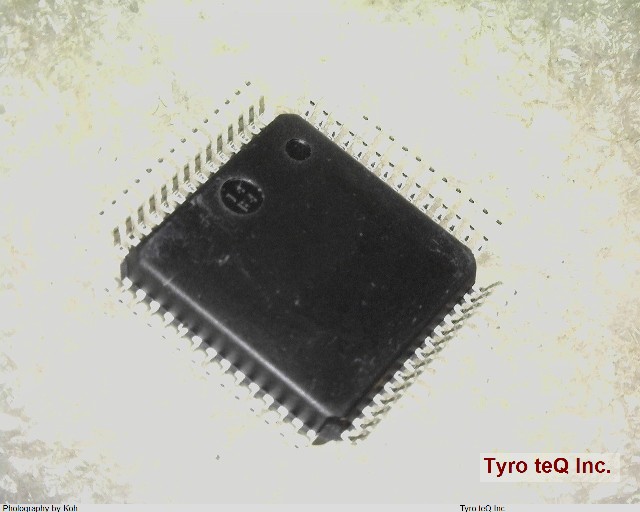

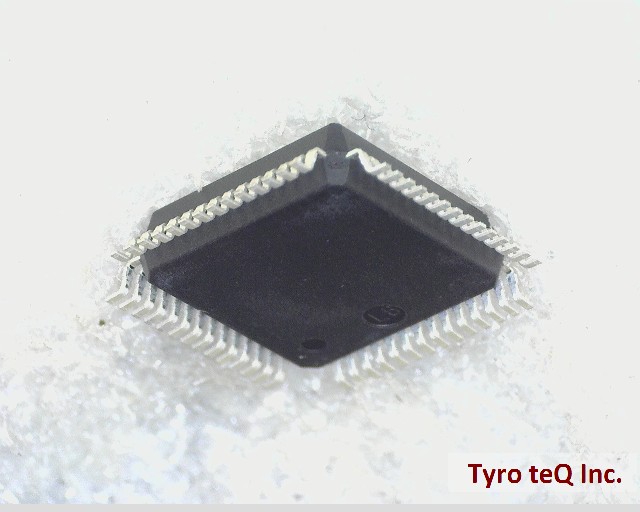

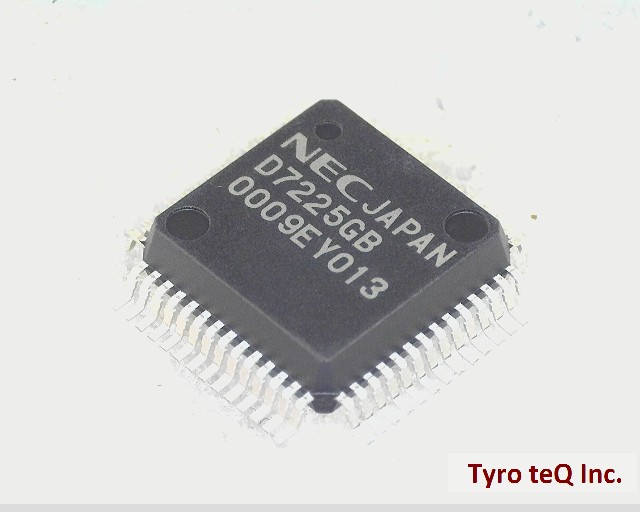

UPD7225GB3B7 データシート

Name: UPD7225GB3B7
Brand: RENESAS
SKU: 310101704-0000-0000-0000

UPD7225GB3B7 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPD7225GB3B7 の詳細情報

型番	UPD7225GB3B7
メーカー	RENESAS
データシート
Address Bus Width	0
Clock Frequency-Max	0.2 MHz
Display Configuration	4 X 32 SEGMENTS
External Data Bus Width	0
JESD-30 Code	S-PQFP-G56
JESD-609 Code	e0
Length	10 mm
Number of Terminals	56
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-10 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	3 mm
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	10 mm
uPs/uCs/Peripheral ICs Type	DISPLAY CONTROLLER, DOT MATRIX LCD DRIVER
