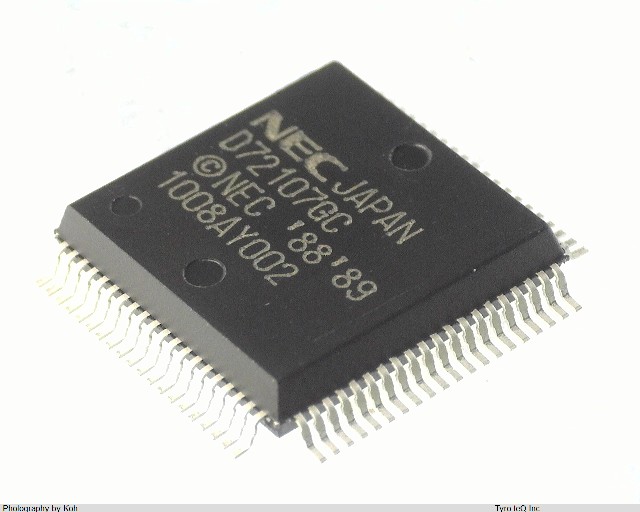

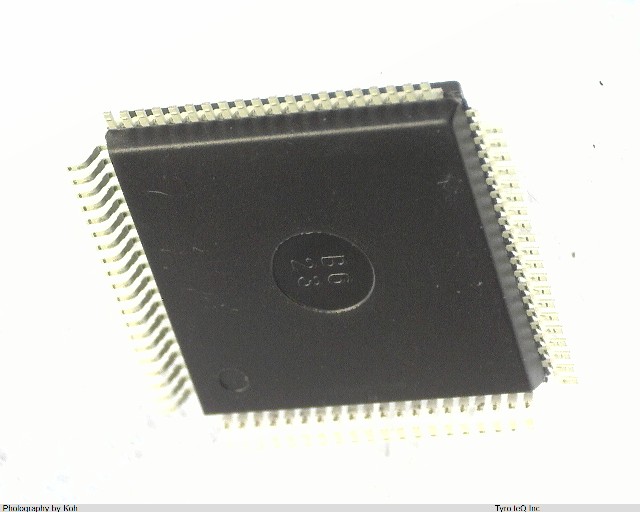

UPD72107GC3B9 データシート

Name: UPD72107GC3B9
Brand: RENESAS
SKU: 310101653-0000-0000-0000

UPD72107GC3B9 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPD72107GC3B9 の詳細情報

型番	UPD72107GC3B9
メーカー	RENESAS
データシート
Address Bus Width	24
Clock Frequency-Max	8.2 MHz
Communication Protocol	SYNC, HDLC
Data Encoding/Decoding Method	NRZ; NRZI
Data Transfer Rate-Max	0.5 MBps
External Data Bus Width	16
JESD-30 Code	S-PQFP-G80
JESD-609 Code	e0
Length	14 mm
Number of Serial I/Os	1
Number of Terminals	80
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP80,.7SQ
Package Shape	SQUARE
Package Style	FLATPACK Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	3 mm
Sub Category	Serial IO/Communication Controllers
Supply Current-Max	50 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	QUAD
Width	14 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL
