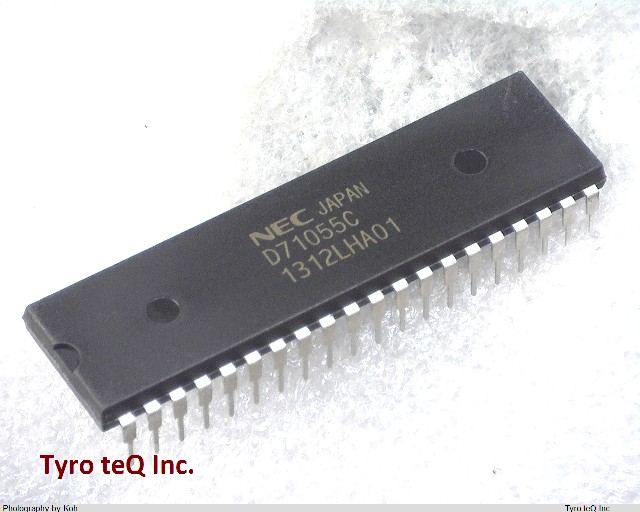

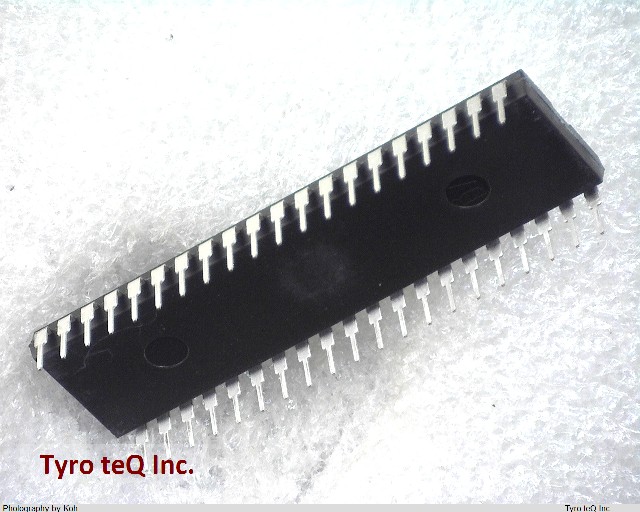

UPD71055C データシート

Name: UPD71055C
Brand: RENESAS
SKU: 310095230-0000-0000-0000

UPD71055C - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPD71055C の詳細情報

型番	UPD71055C
メーカー	RENESAS
データシート
Clock Frequency-Max	8 MHz
External Data Bus Width	8
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Number of I/O Lines	24
Number of Ports	3
Number of Terminals	40
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.72 mm
Sub Category	Parallel IO Port
Supply Current-Max	10 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	PARALLEL IO PORT, PRINTER INTERFACE
